Thomas & Betts

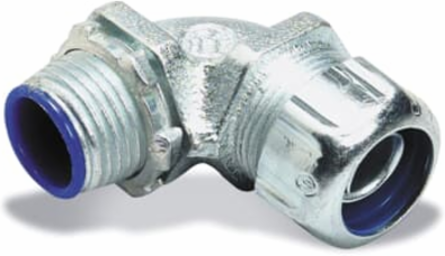

Thomas & Betts 5252 1/2 NON-INSUL 90 DEG LT CONN

1/2 NON-INSUL 90 DEG LT CONN
  • MPN: 5252
  • UPC: 786210052526
  • PPN: T-B-5252
  • UNSPSC: 39121420

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$21.81/ EA

Description

Liquidtight Conduit Fitting, 90 Degree 1/2 Inch, Non-Insulated Malleable Iron

Specifications

Size
1/2 in
Finish
Electro Zinc Plated/Chromate Coating
Dimensions
1 3/8 in x 1 9/16 in x 9/16 in
Working Temperature Range
-20 to +105 °C
Compliance
UL E23018, CSA, UL 514B, CSA C22.2 No. 18.3, IEC 61386-1, -23, RoHS
Brand
T&B Liquidtight Fittings
MaterialMalleable Iron
Thread TypeNPT
Weight0.29 lbs
Voltage RatingUp to 1,000 V
Ingress ProtectionType 3, 3R, 4, 6, 12, 13; IP66, IP67, IP68, IP69
Country of OriginGermany
