Bell

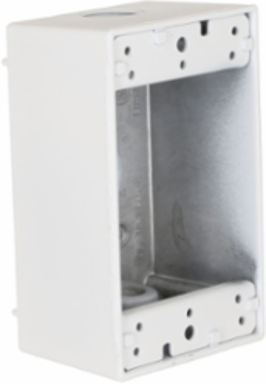

Bell 5320-1 1-Gang Weatherproof Box, 3 Outlets, Metallic Construction, 2.81 Inch Width, White

1-Gang Weatherproof Box, 3 Outlets, Metallic Construction, 2.81 Inch Width, White
1-Gang Weatherproof Box, 3 Outlets, Metallic Construction, 2.81 Inch Width, White
  • MPN: 5320-1
  • UPC: 050169532010
  • PPN: HBL-5320-1
  • UNSPSC: 39121305

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$23.25/ EA

Description

1-Gang Weatherproof Box, Three 1/2 in. Threaded Outlets, White

Features

  • Rugged die-cast aluminum construction
  • State-of-the-art powder coat finish providess maximum weatherability and scratch resistance
  • Eight box mounting options with detachable lugs
  • Includes two 1/2 in. closure plugs
  • Internal hub threads comply with NEMA requirements and will accept all threaded fittings and threaded conduit
  • Ground screw installed
  • Multi-lingual instructions in each package

Specifications

Specifications

Country of Origin
India
ChannelSightWidgetId
705
Product Type
Weatherproof Boxes & Extensions
Color
White

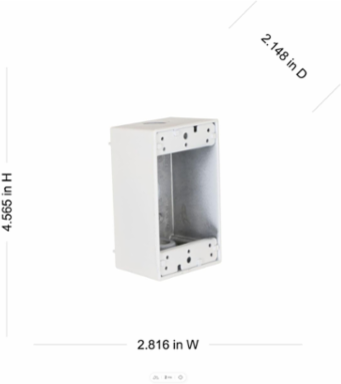

Depth
2.148 in
Standard
UL Listed;CSA Certified
Width
2.816 in
Nema Rating
NEMA 3R
Thread Size
1/2 in
Class Code
D16
Freight Class Code
06202000
Image Actual Or Representative
A
MSDS Flag
No
Returnable Indicator
Yes
Sub Class Code
D160D1600
Material
Aluminum
Base Unit of Measure
EA
Box Type
1-Gang
Carton - Number of Sub Packs
20
Carton - SCC-14 Next Lower Level Sub Pack
50169532010
Each - Pack Description
Each
Lowest Level UOM
Each
Package Length
2.148 in
Package Width
2.816 in
Pallet - Number of Sub Packs
90
Pallet - SCC-14 Next Lower Level Sub Pack
50050169532015
Pallet Height
49.280 in
Pallet Weight
1379.880 lb.
Actual Depth2.142 in
Height4.565 in
Standard Package20
Cubic Capacity18.3 cu.in
Number of Outlet3
Type1-Gang
Material typeMetallic
Number Of Outlets3
ARRA CompliantContact Manufacturer
Description - InvoiceWP BX 1G (3)1/2 OTLETS WHT
Harmonization Code7616995190
Lead Time7 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
ConstructionMetallic
Number of Gang(s)1-Gang
BOX SIZE8.5x16.188x6.5 (in)
Carton - Gross Weight per Pack12.36 lb.
Carton - Pack DescriptionCarton
Carton - Total Units20 EA
Item Package TypeShrink
Package Height4.565 in
Package Weight0.618 lb.
Pallet - GTIN - Package70050169532019
Pallet - Pack DescriptionPallet
Pallet - Total Units1400 EA
Pallet Length48.000 in
Pallet Width40.000 in

Certifications

Buy American Compliant
Contact Manufacturer
EU RoHS Indicator
Yes
Certified ListedUL Listed;CSA Certified
