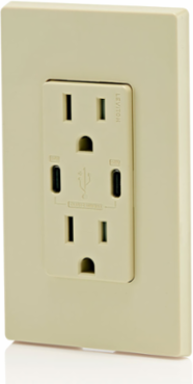

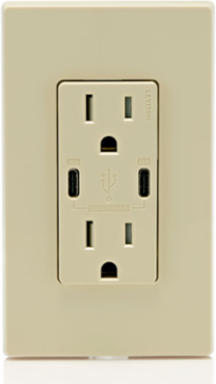

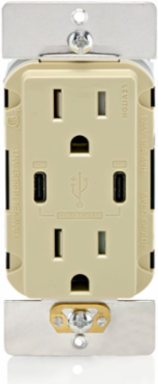

Leviton T5636-I 60W USB Dual Type-C Wall Outlet Charger with 15A Tamper-Resistant Outlet
Leviton T5636-I 60W USB Dual Type-C Wall Outlet Charger with 15A Tamper-Resistant Outlet
- MPN: T5636-I
- UPC: 078477471500
- PPN: LEV-T5636-I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$141.75/ EA
Description
60W (6A) USB Dual Type-C/C Power Delivery Wall Outlet Charger with 15A Tamper-Resistant Outlet - Ivory
Features
- Your time matters. Charge for minutes, enjoy for hours! The most advanced USB in-wall charger on the market with up to 2X the charging power with PD-enabled devices. Also compatible with non-PD devices as well as Type A devices (adapter required) Up to 60W charge on a single port when connected to a PD-enabled device, up to 30W charge per port (60W total) when both USB ports are in use Maximum charging outputs: 5V/3A, 9V/3A, 15V/3A, 20V/3A with a maximum power output of 60W USB Type-C provides faster charging and is emerging as the standard port on many phones, and tablets, such as iPhones, iPads, Samsung Galaxy, Samsung Tabs, Google Pixel and More Compatible with USB 3.1, 3.0, 2.0, 1.1 devices Smart chip recognizes and optimizes the charging requirements of individual devices No data transfer capability Overcurrent protection helps protect the electronics from receiving too much power, which can damage the device Internal thermoregulator prevents the electronics from overheating Tamper-resistant outlets block access by most non-rated/foreign objects to help keep children safe For new construction and retrofit installations, an extra deep electrical box (20 cu. in.) or wallbox extender is required Use with Decora wallplate or Decora Plus screwless wallplate (sold separately)

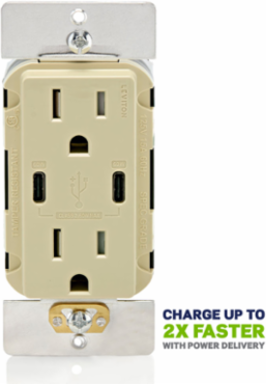

- POWERFUL – 60W charge on a single port. Up to 2x the charging power with PD-enabled devices
- INNOVATIVE – USB Type-C or USB-C provides faster charging and is the new standard port on many phones, tablets and laptops
- ENHANCED SAFETY – Overcurrent protection helps protect electronic devices from over charging/heating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets
- FAST CHARGING – Smart chip ensures each device gets the power level it needs to charge fast and efficiently
Specifications
Standards and Certifications
- FCC Part 15
- Class B
- NOM
- 057
- UL 498
- Yes
ListedcCSAis
UL 1310Yes
Warranty2-Year Limited
Mechanical Specifications
- Type
- Standard Duplex
Specifications
- Country of Origin
- Mexico - Pending
RoHS CompliantFalse
Product Features
- Amperage
- 15 A
- Color
- Ivory
- Grounding
- Grounding
- Power Delivery
- Yes
- Tamper Resistant
- Yes
- Voltage
- 125 VAC
- Wire
- 3
BrandDecora
GradeResidential/Commercial Specification Grade
NEMA5-15R
Strap MaterialSteel

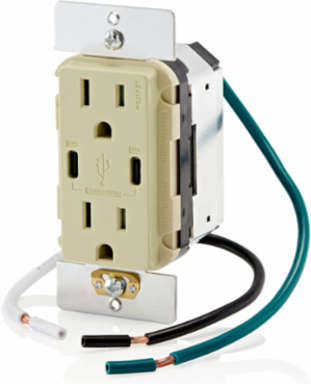

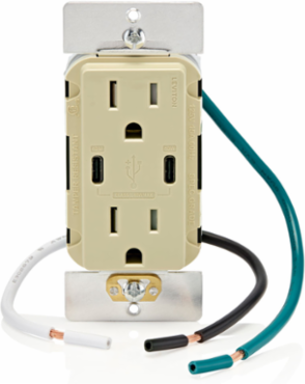

TerminationWire Leads
WallplateIncluded
Environmental Specifications
- Body Material
- Thermoplastic
- Notes
- w/ Wallplate
- Yoke
- Zinc-Plated Steel
Face MaterialThermoplastic
Operating Temperature-10°C to 40°C
Electrical Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-10°C to 40°C
Downloads
