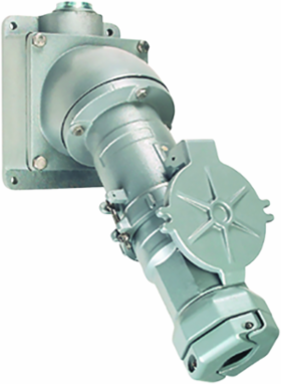

Killark VR20322C7 200A 2 Pole 3 Wire Receptacle, 2-1/2 Inch Box Size, 600 VAC
Killark VR20322C7 200A 2 Pole 3 Wire Receptacle, 2-1/2 Inch Box Size, 600 VAC
- MPN: VR20322C7
- UPC: 783936833224
- PPN: HBL-VR20322C7
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
200A 2 Pole 3 Wire Receptacle with C Type Box 2-1/2"
Features
- Patented “Breech-Lock” cap serves as both flip lid and screw cover.
- Patented notch in cap arm holds cap open for easy plug insertion or maintenance.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Boxes come with a green grounding screw.
- VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Specifications
Specifications
- Country of Origin
- United States
- Dimensions
- 9.87 in x 8.19 in x 10.81 in
- Length
- 9.87 in
- Width
- 8.19 in
- Application
- Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
- Frequency Rating
- 50-400 Hz
- Style
- Style II
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- VERSAMATE 200A RECPT 2W3P BOX
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material
- Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936833224
Back Box TypeFEED THRU
Height10.81 in
Voltage Rating600 VAC;250 VDC
Amperage Rating200 A
Finish TypeBaked Powder Epoxy/Polyester Finish
Number Of Wires2
TypePin & Sleeve
Class CodeD35
Freight Class Code06168002
Image Actual Or RepresentativeR
Sub Class CodeD35D260
SeriesVersaMate Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Total Units1 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
