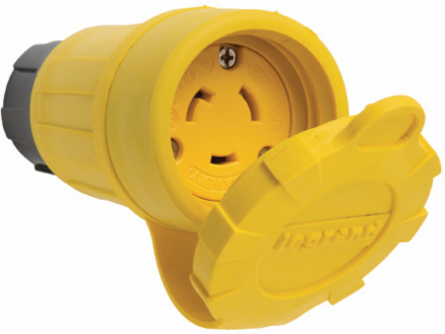

Pass & Seymour 27W47 Turnlok 20A Watertight Connector, NEMA 4X/6P, Yellow, 4.03 Inch Depth
Pass & Seymour 27W47 Turnlok 20A Watertight Connector, NEMA 4X/6P, Yellow, 4.03 Inch Depth
- MPN: 27W47
- UPC: 785007032598
- PPN: P-S-27W47
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$72.69/ EA
Description
Rated watertight for 1,500 psi high-pressurehosedown, Pass and Seymour Turnlok watertight plugs and connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
Features
- Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat and weather.
- Nickel-plated blades and contacts for long-lasting, superior corrosion resistance.
- Multi-point sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.
- Devices resist high-pressure hosedown of 1,500 psi.
- Color-coded sealing bushings provided for large range of cord diameters
- Large ribs on body for a superior grip when mating.
- For Covering Patents, see www.legrand.us/patents.
Specifications
Specifications
- Depth
- 4.03 in
- Height
- 1.85 in
- Width
- 1.85 in
- Special Features
- Rated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
- Type
- Connector
- Voltage
- 125.0 V
- Features
- Watertight
- Number of Wires
- 3.0
- Number of Phases
- 1.0
- Connector Style
- Locking
- Application Sector
- Industrial
- Environmental Conditions
- Moisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
ColorYellow
Product LinePass & Seymour
Country of OriginUnited States
FlangedNo
Amperage20.0 A
StandardUL Listed
Indoor/OutdoorBoth
StandardCSA Listed
Warranty Type1-Year
Number of PolesDouble Pole
NEMA Configuration CodeL5-20R
Terminal Accommodation#14 AWG - #10 AWG
