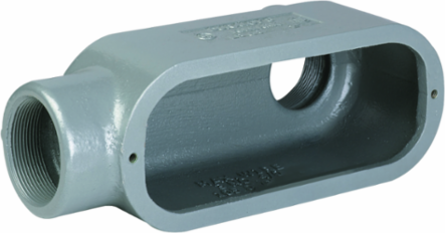

Killark LB28 3/4 Inch LB Hub Iron Conduit Body, Length 6 Inch, Width 2 Inch, Raintight
Killark LB28 3/4 Inch LB Hub Iron Conduit Body, Length 6 Inch, Width 2 Inch, Raintight
- MPN: LB28
- UPC: 783936481067
- PPN: HBL-LB28
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$61.63/ EA
Description
3/4" LB Hub, Iron Duraloy 8 Conduit Body+E5732
Features
- Completely interchangeable with competative bodies, gaskets, and covers.
- Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing.
- Raintight when used with gasketed covers.
- Stainless steel screws on stamped and cast covers.
- Smooth integral wire bushings.
- Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
Specifications
Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 3 in
- Length
- 6 in
- Type
- Conduit Body
- Engineering Drawing 1 Display Text
- LB28 Engineering Drawing
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- COND BODY,LB,GRAY IRON 3/4"
- Harmonization Code
- 7307110030
- Lead Time
- 49 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 1.47
- UL File Number
- E3397
- Series
- Duraloy 8 Series
- BOX SIZE
- 4.250x7.625x5.875 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936481067
- Master Pack Description
- Each
Dimensions6 in x 2 in x 3 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
FinishPowder Epoxy Paint
Hub Size3/4"
Special FeaturesCompletely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
Width2 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternLB
MaterialIron
Base Unit of MeasureEA
Carton - Gross Weight per Pack7.350 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Downloads
