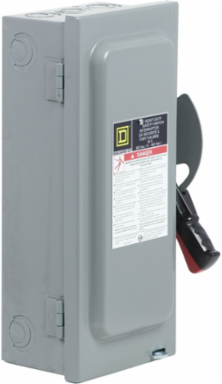

Square D CH361 Safety switch, heavy duty, fusible, 30A, 600VAC/VDC, 3 poles, 20HP, NEMA 1
Square D CH361 Safety switch, heavy duty, fusible, 30A, 600VAC/VDC, 3 poles, 20HP, NEMA 1
- MPN: CH361
- UPC: 785901995142
- PPN: SCH-CH361
- UNSPSC: 39122205
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$230.71/ EA
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This device is rated at 30 amps, three poles, 20 horse power, with a voltage of 600 VAC and 600 VDC. This device is Type 1 rated with a steel enclosure.
Features
- Long term durability
- Efficient installation
- Operation safety features
- 500hp maximum
- CSA and UL certifed
Specifications
Conformance Attributes
- Product Certifications
- CSA
Complementary Attributes
- Maximum Horse Power Rating
- 20 hp at 600 V AC 50/60 Hz for 3 phase motors, 15 hp at 480 V AC 50/60 Hz for 3 phase motors, 7.5 hp at 240 V AC 50/60 Hz for 3 phase motors, 7.5 hp at 480 V AC 50/60 Hz for 1 phase motors, 3 hp at 240 V AC 50/60 Hz for 1 phase motors, 15 hp at 600 V DC
Line Rated Current30 A
Important Information Attributes

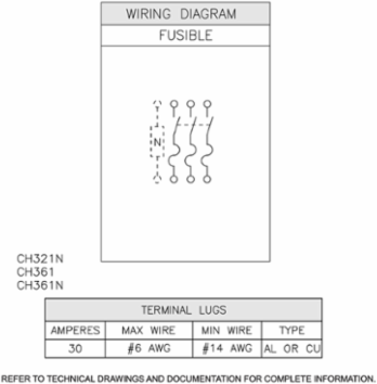

- AWG Gauge
- AWG 12...AWG 6 aluminium, AWG 14...AWG 6 copper
- Tightening Torque
- 45-45 lbf.in 13.3-13.3 mm² (AWG 6), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 8 kg CO2 eq., 8.3888778461716
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 20 kg CO2 eq., 19.894532207358168
- Local Data Status
- Publishable
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- Outside of Europe
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- No
- Without Single Use Plastic
- Yes
- Device Composition
- none
- Electrical Connection
- lugs
- Package Weight Lbs
- 3.647 kg
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- heavy duty
- Total Lifecycle Carbon Footprint
- 33 kg CO2 eq.
- Medium Desc
- Safety switch, heavy duty, fusible, 30A, 600VAC/VDC, 3 poles, 20HP, NEMA 1
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; US
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; US
- Global Commercial Status
- End of commerc. - Block
Motor Power HP7.5 hp at 600 V AC 50/60 Hz for 3 phase motors, 5 hp at 480 V AC 50/60 Hz for 3 phase motors, 3 hp at 240 V AC 50/60 Hz for 3 phase motors, 3 hp at 480 V AC 50/60 Hz for 1 phase motors, 1.5 hp at 240 V AC 50/60 Hz for 1 phase motors, 10 hp at 600 V DC, 5 hp at 250 V DC
Carbon Footprint Of The Distribution Phase A41.0850744806392358, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.3815046694334359, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B63 kg CO2 eq., 3.2480830971283483
Local Publishable Date2025-12-09
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
With Recycled CardboardYes
Return IndicatorN
Disconnector Device Typefusible disconnect
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Sustainable PackagingYes
Ue Rated Operational Voltage2600 V AC/DC
Stocking FlagY
Pep CodeENVPEP2305006EN
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; US
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; US
Ue Rated Operational Voltage5600 V AC/DC
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- ROHS Exemption Information
- Yes
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP2305006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Recycled Metal Content At Cr Level0 %
Carbon Footprint32.99807230073078
Nema Degree Of ProtectionNEMA 1 galvannealed steel
Packaging Without Single Use PlasticYes
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Specifications

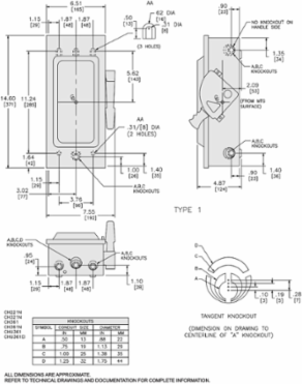

- Depth
- 4.87 in
