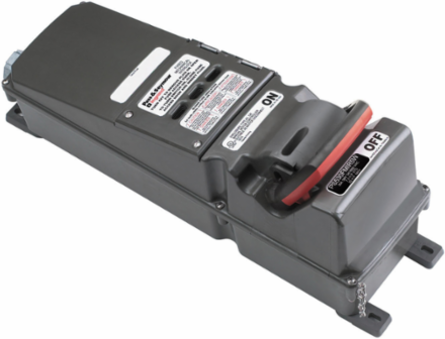

Pass & Seymour PS530FMIR9W 30A 4 Pole 5 Wire Fusible Mechanical Interlock, 9.13 Inch Width, Gray
Pass & Seymour PS530FMIR9W 30A 4 Pole 5 Wire Fusible Mechanical Interlock, 9.13 Inch Width, Gray
- MPN: PS530FMIR9W
- UPC: 785007101140
- PPN: P-S-PS530FMIR9W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4434.64/ EA
Description
Four pole, Five wire, Fusiable Mechanical Interlock Receptacle. 3 amp, 208 volt.
Features
- Top or Bottom feed.
- Unit shipped with no holes drilled: a top and bottom feed spot drill is provided for locating hole saw or knockout.
- End user decides at installation whether top or bottom feed is appropriate.
- No closure plug kits required.
Specifications
Specifications
- Depth
- 9.53 in
- Height
- 24.5 in
- Width
- 9.13 in
- Country of Origin
- United States
- Standard
- UL Listed
- Warranty Type
- 1-Year
- Number of Poles
- 4-Way
- Enclosure Type
- NEMA 4X
- Outlet Type
- Pin & Sleeve
- Application Sector
- Industrial
- IEC Clock Position
- Clock Position 9
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -50°-60°C
ColorGray
Product LinePass & Seymour
Amperage30.0 A
Voltage120.0 V
Number of Wires5.0
Indoor/OutdoorIndoor
Enclosure TypeNEMA 12
Wall Plate IncludedYes
Number of Receptacles1.0
Connection LocationTop and Bottom
Wire Connection TypeScrew Terminals
Operating Temperature Min-50.0 °C
Special FeaturesImpact, chemical resistant, non conductive retaining screw, brass male/female contacts
