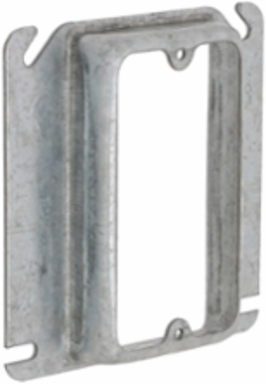

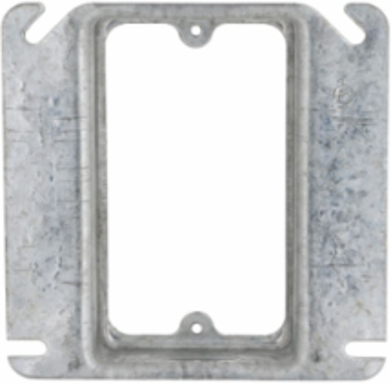

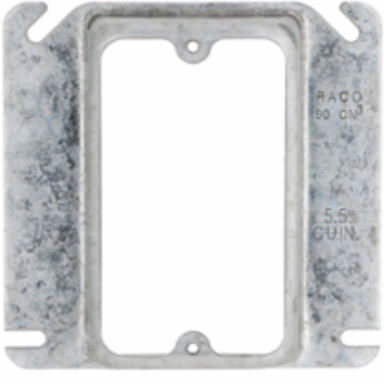

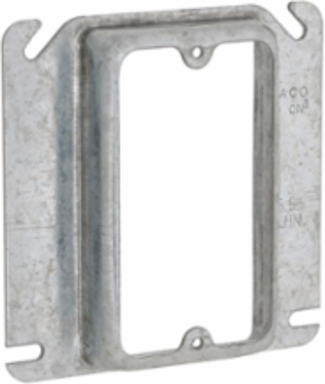

Raco 8773 4 Inch Square Cover, 1-Gang, 3/4 Inch Raised, Steel Material
- MPN: 8773
- UPC: 050169007730
- PPN: HBL-8773
- UNSPSC: 39121304
CAD
$4.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
4 in. Square Cover, 1-Device, 3/4 in. Raised
Features
- Angled mounting slots compensate up to 12 degrees for box misalignment
- Cover mounts to devices
- Cover surface is 1/4 in. from wall when installed
- Corners are contoured to fit handy boxes
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Description - Slang
- Square Cover Raised
- Product Type
- Cover
- Cubic Capacity
- 5.5 cu.in
- Standard
- cULus Listed
- Weight
- 0.272 lb.
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 4SQ MUDRG 1)DEV 3/4RSD
- Harmonization Code
- 7326190080
- MSDS Flag
- Yes
- Sub Class Code
- D010D0105
- Paintable/Stainable
- No
- Number of Gang(s)
- 1-Gang
- Proposition 65 Warning Required
- No
- BOX SIZE
- 8.75x8.75x5 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 50169007730
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 80050169007736
- Pallet - Pack Description
- Pallet
- Pallet - Total Units
- 4800 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 42.000 in
Depth0.75 in
Height4 in
Size4 in
ShapeSquare
TypeMud Ring
Width4 in
Class CodeD01
Freight Class Code06202000
Image Actual Or RepresentativeA
Returnable IndicatorYes
Drawn or WeldedDrawn
MaterialSteel
Raised Height0.75 in
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.8 lb.
Carton - Pack DescriptionCarton
Carton - Total Units24 EA
Lowest Level UOMEach
Pallet - Number of Sub Packs200
Pallet - SCC-14 Next Lower Level Sub Pack40050169007738
Pallet Height45.500 in
Pallet Weight1350.800 lb.
NAICS Code3359326102
Certifications
- Certified Listed
- cULus Listed
EU RoHS IndicatorContact Manufacturer
