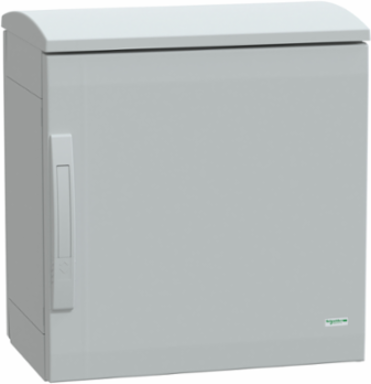

Schneider Electric NSYPLAT553G Floor Standing Polyester Enclosure, 500x500x320mm, IP44, IK10
Schneider Electric NSYPLAT553G Floor Standing Polyester Enclosure, 500x500x320mm, IP44, IK10
- MPN: NSYPLAT553G
- PPN: SCH-NSYPLAT553G
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$945.06/ EA
Description

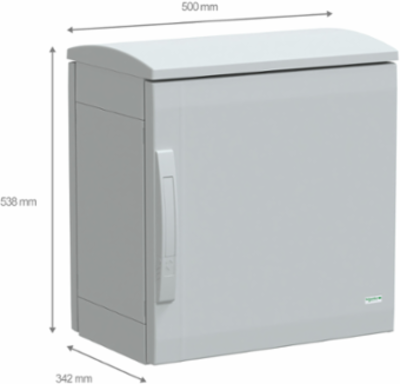

Introducing a versatile solution for your electrical housing needs, the floor-standing polyester enclosure from Schneider Electric combines durability and functionality in a compact design. Constructed from polyester reinforced with fiberglass, this enclosure features a solid front door that is reversible and allows for easy access from the front, rear, or top. With an IP44 rating, it offers protection against dust and water, while the IK10 rating ensures resistance to impact, making it ideal for various applications in demanding environments. Measuring 500x500x320 mm, this enclosure is designed to withstand extreme temperatures ranging from -35°C to 90°C, ensuring reliable performance in any setting.
Features
- Durable fiberglass-reinforced polyester construction for harsh indoor/outdoor environments.

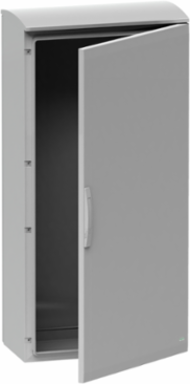

- Available in grey (RAL 7035) with a front door that opens up to 120° for easy access.
- Two-point handle lock with a 5mm double-bar insert ensures secure closure.
- Offers protection against fire withstanding temperatures up to 960°C (IEC 62208 compliant).
- High impact resistance with an IK10 rating (IEC 62262).
- Rated IP44 (IEC 60529) providing high protection against dust and water.
- Prevents electric shocks with class II electrical insulation.
- Operates efficiently in temperatures ranging from -35°C to 90°C without performance loss.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 500 mm
Enclosure Nominal Height500 mm
Conformance Attributes
- Product Certifications
- Veritas
StandardsIEC 62208
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 canopy
- Carbon Footprint Of The Distribution Phase A4
- 28.985711180755736, 29 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 4.918367319700952, 5 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Device Application
- multi-purpose
- Door Opening Side
- reversible 120 °)
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type
- 2 points handle lock, 5 mm double-bar
- Package Weight Lbs
- 14.600 kg
- Product Or Component Type
- suitable enclosure
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 114 kg CO2 eq.
- Stocking Flag
- Y
- Pep Code
- ENVPEP1105005EN
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Product Name
- PanelSeT PLA
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Removable Partsdoor by hinges, rear panel by fixing element, canopy by fixing element
Carbon Footprint Of The End Of Life Phase C1 To C427 kg CO2 eq., 26.624503467373923
Carbon Footprint Of The Manufacturing Phase A1 To A353 kg CO2 eq., 53.03964584243389
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Body Typeopen top and sealed bottom part assembled with side parts
Device Short NamePLAT
Door TypeSolid front
Enclosure Mountingfloor-standing
Fire Resistance960 °C IEC 62208
Materialpolyester reinforced with fibreglass
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Medium DescFloor standing polyester enclosure, PanelSeT PLA, plain door, ventilated canopy, 500x500x320mm, IP44, IK10
Product Kit IdentifierN
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Spain, ES
Energy Model Use B6 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 113.5682278102645
- Environmental Disclosure
- ENVPEP1105005EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-10-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-35-90 °C
IP Degree Of ProtectionIP44 IEC 60529 with ventilated canopy)
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1105005EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- suitable enclosure
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
