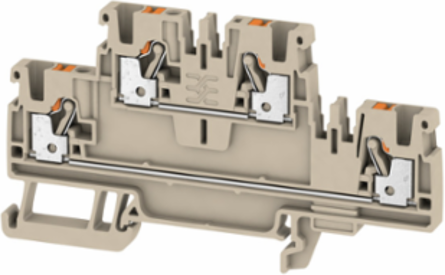

Weidmuller 1547610000 Feed-through Terminal Block 2.5 mm², 24 A, 800 V, PUSH IN, Dark Beige
Weidmuller 1547610000 Feed-through Terminal Block 2.5 mm², 24 A, 800 V, PUSH IN, Dark Beige
- MPN: 1547610000
- PPN: WDM-1547610000
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4.12/ EA
Description
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, dark beige
Specifications
- Rated Voltage
- 800 V
- Rated Impulse Withstand Voltage
- 8 kV
- Pollution Severity
- 3
- Storage Temperature Range
- -25 C to 55 C
- Wire Connection Cross-Section Min
- 0.14 mm2
- Wire Connection Cross-Section Max Solid Core
- 2.5 mm2
- Wire Connection Cross-Section Min Finely Stranded
- 0.5 mm2
- Wire Cross Section Min
- 0.14 mm2
- Twin Wire-End Ferrules Max
- 0.75 mm2
- Clamping Range Min
- 0.14 mm2
- Blade Size
- 0.6 x 3.5 mm
- Connection Type
- PUSH IN
- Height
- 90 mm (3.543 inch)
- Depth
- 50.5 mm (1.988 inch)
- Number of Levels
- 2
- Number of Potentials
- 2
- Material
- Wemid
- Colour of Operational Elements
- Orange
- Compliance
- RoHS, UL Listed (cURus E60693), ATEX, IECEx, CE, CSA, DNV GL, EAC
- Explosion-Tested Version
- Yes
- ETIM
- EC000897
Rated Current24 A
Current at Maximum Wires24 A
Continuous Operating Temperature Range-60 C to 130 C
Rated Cross-Section2.5 mm2
Wire Connection Cross-Section Max2.5 mm2
Wire Connection Cross-Section Min Solid Core0.5 mm2
Wire Connection Cross-Section Max Finely Stranded2.5 mm2
Wire Cross Section Max4 mmb2
Twin Wire-End Ferrules Min0.5 mm2
Clamping Range Max2.5 mm2
Stripping Length10 mm
Mounting TypeTS 35 Rail
Width5.1 mm (0.201 inch)
Net Weight13.17 g
Number of Connections4
Number of Clamping Points per Level2
ColourDark Beige
Flammability RatingUL 94 V-0
StandardsIEC 60947-7-1
Surge Voltage CategoryIII
