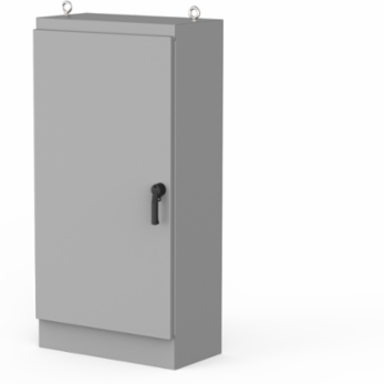

nVent Hoffman A722418FS Freestand Type 12 Enclosure, 72.06x24.06x18.06 Inch, Gray Steel, 262 lb
nVent Hoffman A722418FS Freestand Type 12 Enclosure, 72.06x24.06x18.06 Inch, Gray Steel, 262 lb
- MPN: A722418FS
- UPC: 783510255008
- PPN: HOF-A722418FS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3898.46/ EA
Description
NEMA Type 4, Free-Stand, Front and/or Rear Access, Enclosures protect equipment and employees. This Freestand Single Access White Inside Type 4, A722418FS item measures 72.06x24.06x18.06in. with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth; no holes or knockouts
- Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
- Lifting eyes for easy handling
- 3-point latches operated by padlocking handle
- Concealed, easy-to-remove hinges
- Data pockets are high-impact thermoplastic
- Internal mounting channels welded horizontally to sides at top, bottom and center
- Optional panels and rack mount angles can be mounted anywhere along channels
- Single door type 4 foam in place gasket, double door type 3R strip gasket
- Bonding provision on door
- Provision for mounting LED light
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 611
- Protection Rating
- NEMA Type 4
- Color
- Gray
- Color Code
- ANSI 61
- Rack Unit Quantity
- 35
- IP Rating
- IP66
- Material
- Steel
- NEMA Rating
- 12 Indoor, dust-resistant
Height (H)1,830
Depth (D)459
FinishPowder Coated
Interior ColorWhite
Thickness (T)2.66
Lifting Eye Quantity2
Weight262
Size72.06x24.06x18.06 in
