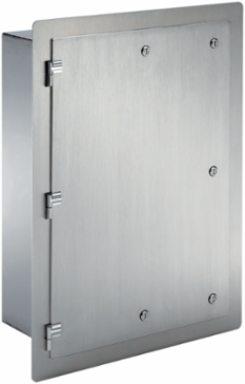

nVent Hoffman AFMSC242010SS PharmaPro Flush-mount Screw Cover Type 4X, 24x20x10, Brushed, SS 304
nVent Hoffman AFMSC242010SS PharmaPro Flush-mount Screw Cover Type 4X, 24x20x10, Brushed, SS 304
- MPN: AFMSC242010SS
- UPC: 783510149215
- PPN: HOF-AFMSC242010SS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
This flush-mounted PharmaPro enclosure specifically designed for use in pharmaceutical applications. This PharmaPro Flush-mount Screw Cover Type 4X, AFMSC242010SS item measures 24x20x10in. with a material of SS 304, Brushed.
Features
- Specifically designed for pharmaceutical industry—flush mounting and flat surfaces eliminate areas where contaminants can accumulate
- Low RA value of PharmaPro finish minimizes surface crevices, allowing for a thorough wipe-down
- Enclosure does not protrude into the manufacturing area
- Mounting system included
- Mounting flange manufactured from 10 gauge Type 316L stainless steel
- Seams continuously welded and ground smooth
- Type 316L stainless steel lift-off hinges used with hinged door
- Type 316L stainless steel slotted oval-head fasteners used with screw cover
- Stainless steel quarter-turn latches used with hinged door
- FDA-approved silicone gasket
- Grounding stud on body; bonding provision on cover or door
Specifications
Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 508
- Protection Rating
- NEMA Type 12
- Finish
- 15-20 RA
- Door Thickness
- 2.78
- IP Rating
- IP66
- Weight
- 65.6
- Material
- Stainless Steel
Height (H)610
Depth (D)254
Product FamilyPharmaPro
Body Thickness1.98
Cutout Size667 x 565
NEMA Rating4X Watertight, corrosion-resistant
Sub BrandPharmaPro
Size24.00x20.00x10.00 in
