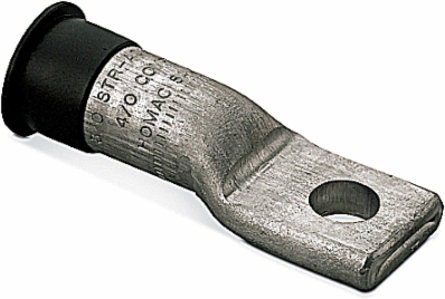

Blackburn SA 3-48 TN Aluminum One Hole NEMA Lug 3-1/8 Inch Length, Tin-Plated, 1/2 Inch Bolt

Aluminum One Hole NEMA Lug 3-1/8 Inch Length, Tin-Plated, 1/2 Inch Bolt
  • MPN: SA 3-48 TN
  • UPC: 783786749973
  • PPN: T-B-SA 3-48 TN

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$16.38/ EA

Description

Tin-Plated Aluminum Compression One-Hole NEMA Lug - Common Die Series for Aluminum and Copper Conductors on Homac 125 Series Insulated Buses, 1/2 inch Bolt, Concentric 2, Compressed 2, Compact 1 and 2, Solid 1, Installing Dies TU,52,BG,243,5/8,CSA 22

Features

  • Entire Conductor Range Installed by Four Dies to Reduce Die Inventory.
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Made from Aluminum for High Strength and Conductivity.
  • Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
  • All Lugs Marked with Conductor Size and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121448 Wire or cable compression connector
Brand Name
Blackburn
Special Features
Dual-Rated for use with Aluminum and Copper Conductors. Made from Aluminum for High Strength and High Conductivity. Connector Bores coated with Oxide Inhibitor to Prevent Oxidation. Marked with conductor sizes and die references.
Standard
ANSI C119.4
Conductor Range
#2 Concentric or Compressed. #1 or #2 Compact. #1 Solid
Finish
Tin-Plated
Bolt Size
1/2 inch
IGCC4668 Wire or cable compression connector
TypeAluminum One Hole NEMA Lug
ApplicationDesigned for General Applications and for Installation on 125 Series Insulated Buses.
SizeLength 3-1/8 inch
MaterialAluminum
InsulationNone

Packaging

Outer Quantity
100
Weight Uom
0.07 lbs. Each
Outer Dimensions (inches)1x1x1
