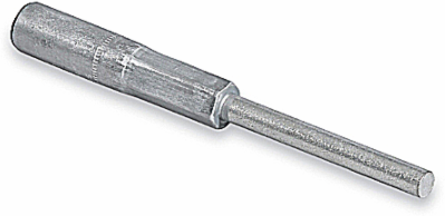

Blackburn X 5 U 10 Aluminum Compression Pin Terminals 1/0 Stranded Size, 22.75 lbs/100

MPN: X 5 U 10
UPC: 783786759736
PPN: T-B-X 5 U 10

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$30.96/ EA

Qty:

Loading add to cart quantity...

Description

Aluminum Compression Pin Terminals - X5 Series, conductor size Aluminum - Solid, 1/0 Stranded, 1/0 ACSR, installing dies 840,WK840,249,TX,11A, solid Copper Pin 2 (.257), length (P) 2-1/2 inch.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121432 Electrical terminals

Brand Name: Blackburn

Special Features: Eliminates cold-flow problems of Aluminum conductor in Copper clamps. Oxide Inhibitor and Metal Sealant Prevent Oxidation and Protect Pin/Body from Moisture Intrusion.

Connection: Crimp / Compression

Material: Aluminum and Copper with Tin-Plated Pin

IGCC4603 Electrical terminals

TypeAluminum Compression Pin Terminals

ApplicationConnect Aluminum and ACSR to Copper-Alloy Equipment Clamps.

Wire SizeAluminum Stranded 1/0, ACSR 1/0

Packaging

Inner Quantity: 25

Outer Quantity: 100

Weight Uom: 22.75 lbs. per 100

Inner Dimensions (inches)7.3x7x4.6

Outer Dimensions (inches)14.5x10x8.25
