Blackburn

Blackburn SA 386-48 TN Aluminum One Hole NEMA Lug 1/2 Inch Bolt, 3-1/8 Inch Long, Tin-Plated

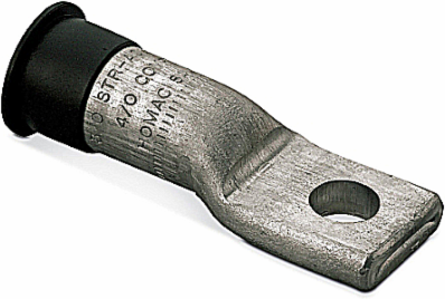

Aluminum One Hole NEMA Lug 1/2 Inch Bolt, 3-1/8 Inch Long, Tin-Plated
  • MPN: SA 386-48 TN
  • UPC: 783786750115
  • PPN: T-B-SA 386-48 TN

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$21.25/ EA

Description

Tin-Plated Aluminum Compression One-Hole NEMA Lug - Common Die Series for Aluminum and Copper Conductors on Homac 125 Series Insulated Buses, 1/2 inch Bolt, Concentric 1, Compression 1/0, Compact 1/0, Installing Dies TU,52,BG,243,5/8,CSA 22

Features

  • Entire Conductor Range Installed by Four Dies to Reduce Die Inventory.
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Made from Aluminum for High Strength and Conductivity.
  • Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
  • All Lugs Marked with Conductor Size and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Specifications

Packaging

Outer Quantity
100
Weight Uom
0.06 lbs. Each
Outer Dimensions (inches)1x1x1

North American Specifications (UNSPSC)

UNSPSC
39121448 Wire or cable compression connector
Brand Name
Blackburn
Special Features
Dual-Rated for use with Aluminum and Copper Conductors. Made from Aluminum for High Strength and High Conductivity. Connector Bores coated with Oxide Inhibitor to Prevent Oxidation. Marked with conductor sizes and die references.
Standard
ANSI C119.4
Conductor Range
Concentric 1, Compression 1/0, Compact 1/0
Finish
Tin-Plated
Bolt Size
1/2 inch
IGCC4668 Wire or cable compression connector
TypeAluminum One Hole NEMA Lug
ApplicationDesigned for General Applications and for Installation on 125 Series Insulated Buses.
Size3-1/8 inch long
MaterialAluminum
InsulationNone
