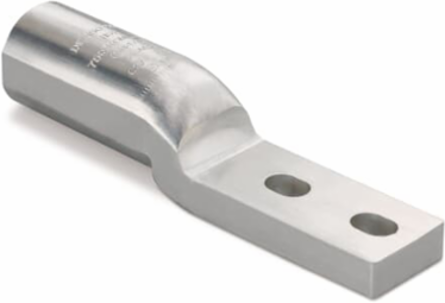

Homac CCAL 800 N ALUMINUM 2 HOLE LUG

MPN: CCAL 800 N
UPC: 783786383382
PPN: T-B-CCAL 800 N
UNSPSC: 39121409

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$114.64/ EA

Qty:

Loading add to cart quantity...

Description

Tin Plated Aluminum Compression Lug, 800 kcmil CCA, (1252/22), Length 8 inches. Pad 1-3/4 inch wide x 3-5/8 nch long x 21/32 inch thick. (2) 9/32 inch Radius Slots on 1-3/4 inch centers. Bolt size 1/2 inch. Barrel 3 inch long x 1-47/64 inch outside diameter. Installing Dies 150, 302, 115X. Oxide Inhibitor. Brown Cap. CCA9 UL listed.

Specifications

Additional Information

Brand / Label: Homac

Effective Date: 20120227

Product Name: ELECTRICAL SPLICE,<1000V

Size: 8 inches long, 1.750 inch wide Pad

Standards: UL Listed

Wire Size: 800 kcmil

Connection TypeCompression

Insulation MaterialNone

Product TypeCompression Lug Two Hole Slotted

Special FunctionsMarked with Conductor Sizes and Dies References.

Surface FinishingTin Plated

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4543 >> Wire connectors

Ordering

Country of Origin: United States (US)

Selling Unit of Measureeach
