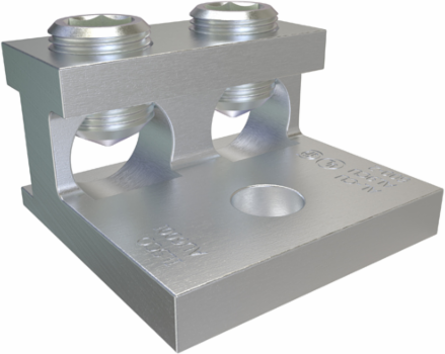

ILSCO AU-600-I Aluminum Mechanical Lug, Conductor Range 600-2, 2 Ports, 1 Hole, 1/2in Bolt Size, Tin Plated, CSA
- MPN: AU-600-I
- UPC: 783669715347
- PPN: ILC-AU-600-I
- UNSPSC: 39121408
CAD
$43.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
ILSCO Canada Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/2 in, C22.2 No. 65, C22.2 No. 188, Copper/Aluminum Primary Conductor 600 kcmil - 2 Str, 2 conductors, 2 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 600 V, primary color Silver, 1 poles,
Specifications
Key Specifications
- Type
- Resource
- ItemUPCCode
- 78366971534
- ItemCatalogIndicator
- C
- ItemConductorRangeCUStrandedPrimaryrunmainline
- 600 kcmil - 2 Str
- ItemConductorRangeALStrandedPrimaryrunmainline
- 600 kcmil - 2 Str
- ItemDriveSizeMain
- 1/2
- ItemMountingBoltStudSize
- 1/2
- ItemWireBindingScrewSize
- 13/16
- ItemWireBindingTorque
- 500
- ItemLengthmm
- 66.3702
- ItemWidthmm
- 65.405
- ItemHeightmm
- 38.1
- ItemDimensionGetc
- 0.69
- ItemMountingBoltStudSizemm
- 304.8
- ItemMountingHoleDiametermm
- 14.2748
- ItemTangLengthmm
- 43.5102
- ItemTangThicknessmm
- 10.7442
- ItemTangWidthmm
- 65.405
- ItemConductorMaterial
- Copper,Aluminum
- ItemWireBindingHardwareMaterial
- Aluminum
- ItemColor
- Silver
- ItemVoltageRating
- 600 V
- ItemCSAStandard
- C22.2 No. 65,C22.2 No. 188
- ItemProp65
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- ItemConductorType
- Stranded
- ItemMountingHoleType
- Thru
- ItemNumberofMountingHoles
- 1
- ItemNumberofPortsWireways
- 2
- ItemBagQuantity
- 1
ItemStatusReady
ItemUNSPSCCode39121408
ItemDualRatedTrue
ItemConductorSizeCUPrimaryrunmainline600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
ItemConductorSizeALPrimaryrunmainline600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil,300 kcmil,250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str
ItemDriveTypeMainInternal Hex
ItemNumberofWireBindingScrewsperPort1
ItemWireBindingScrewSizemm33426.4
ItemLength2.613
ItemWidth2.575
ItemHeight1.5
ItemWeight0.413350170631779
ItemDimensionGmm17.526
ItemMountingHoleDiameter0.562
ItemTangLength1.713
ItemTangThickness0.423
ItemTangWidth2.575
ItemMaterialAluminum
ItemConnectorFinishTin
ItemWireBindingHardwareFinishTin
ItemTemperatureRating90°C
ItemCSAFileNumberLR-5465
ItemULControlNumber18H3
ItemConnectionMechanical
ItemContainsDEOXFalse
ItemNumberofConductors2
ItemNumberofPoles1
ItemNumberofPortsMain2
