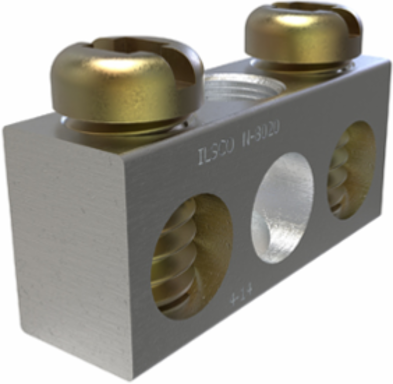

ILSCO NBAS-002-1-A Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 2 Ports, 1 Hole, #10 Bolt, Headed Slot Drive, UL, CSA
ILSCO NBAS-002-1-A Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 2 Ports, 1 Hole, #10 Bolt, Headed Slot Drive, UL, CSA
- MPN: NBAS-002-1-A
- UPC: 783669005509
- PPN: ILC-NBAS-002-1-A
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4.69/ EA
Description
Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 2 Ports, 1 Hole, #10 Bolt, Headed Slot Drive, UL, CSA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.492
- Drive Type Main
- Slotted
- Height (mm)
- 15.7988
- Mounting Hole Diameter (IN)
- 0.203
- Weight BX (LB)
- 0.475
Dimension G (mm)12.4968
Height BX (IN)1.9
Mounting Bolt/Stud Size (mm)254
Mounting Hole Position (IN)2
Width BX (IN)4
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
UL / CULUS SpecificationUL 467 Listed, UL 486A/B Recognized
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 2
- Number of Poles
- 1
- Number of Usable Ports
- 2
Mounting Hole TypeThru
Number of Mounting Holes1
Number of Ports / Wireways3
Type of AccessoryNBST-2/0
Material and Finish
- Conductor Material
- Aluminum, Copper
- Material
- Aluminum
- Wire Binding Hardware Material
- Steel
Connector FinishTin
Wire Binding Hardware FinishYellow Zinc Chromate
Conductor Ranges
- Conductor Range AL Stranded (Primary, run, main, line)
- 4 Str - 14 Str
- Conductor Range CU Stranded (Primary, run, main, line)
- 4 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line)10 Sol - 14 Sol
Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Dual Rated
- Yes
- UPC Code
- 78366900550
Carton Quantity DescriptionSTD PACK QTY 20
NEMA CodeS-588-3
Specifications
- Height
- 0.622 in | 15.7988 mm
- Weight
- 0.019 lbs
Length0.984 in
Width0.312 in
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- #10
- Wire Binding Screw Size
- 1/4
Number of Wire Binding Screws per Port1
Wire Binding Torque10 - 18 AWG = 20, 2 AWG = 40, 8 AWG = 25, 4 - 6 AWG = 35
Color
- Color
- Silver
