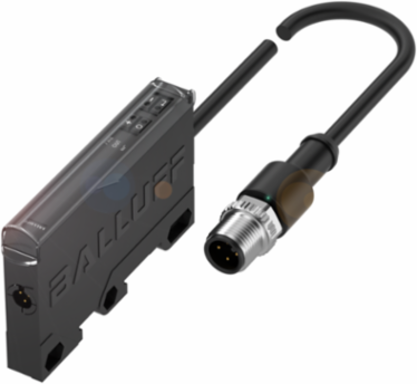

Balluff BAE SA-CS-027-YI-BP00,3-GS04 Capacitive Sensor Amplifier, IO-Link 1.1, 10.5 x 45 x 75.5 mm

Capacitive Sensor Amplifier, IO-Link 1.1, 10.5 x 45 x 75.5 mm
  • MPN: BAE SA-CS-027-YI-BP00,3-GS04
  • PPN: BAL-BAE00LC

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$355.46/ EA

Description

The Balluff capacitive sensor amplifier is a compact and versatile device designed for reliable performance in a variety of applications. With its programmable PNP/NPN switching output and IO-Link 1.1 interface, it offers flexibility in integration and operation, making it suitable for diverse industrial environments. Operating within a voltage range of 18 to 30 VDC and capable of withstanding ambient temperatures from -10 to 70 °C, this amplifier is built to endure tough conditions while maintaining a high switching frequency of 50 Hz. Its robust PBT housing, rated IP40 for protection against dust, ensures durability, while the included M12x1 male connector simplifies installation. This sensor amplifier is an excellent choice for those seeking a reliable and efficient solution for their sensing needs.

Specifications

Switching Output
PNP/NPN NO/NC programmable
Switching Frequency
50 Hz
Size
10.5 x 45 x 75.5 mm
Material
PBT
Time Function
On/off delay time programmable
Country of Origin
Germany
Voltage18-30 VDC
Ambient Temperature Range-10 to 70 °C
ConnectionCable with M12x1 male connector, 4-pin, 0.30 m, PUR
IP RatingIP40
ComplianceCE, UKCA, IO-Link, cULus, WEEE
