Hubbell

Hubbell ATS-01046 ATS-01046 (former catalog number ATS-OO-245-46-4NP-36)

ATS-01046 (former catalog number ATS-OO-245-46-4NP-36)
ATS-01046 (former catalog number ATS-OO-245-46-4NP-36)
  • MPN: ATS-01046
  • UPC: 662620435619
  • PPN: HBL-ATS-01046

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$863.91/ EA

Description

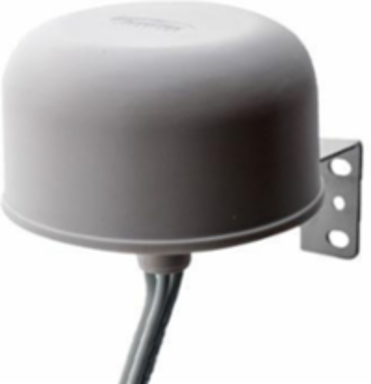

ATS-01046 (former catalog number ATS-OO-245-46-4NP-36). The AccelTex Solutions dual band indoor/outdoor omnidirectional antenna is a perfect complement to any enterprise-class AP to achieve desired coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications.

Features

  • Dual band omnidirectional antenna optimized for 2.4 and 5 GHz Wi-Fi
  • Includes flush mount and wall/pole mount kit for versatile installations

Specifications

Specifications

Country of Origin
China
Cable Type
RG58
Length
4.7 in
Protection Type
DC Grounded
Width
2.8 in
Application
Indoor Wi-Fi, Outdoor Wi-Fi
Frequency Rating
2.4-2.5/4.9-5.85 GHz
Installation Type
Threaded Bolt with Nut and Wall/Pole Mount (included)
Operating Temperature
-40 to 65 °C
Freight Class Code
15730000
Image Actual Or Representative
A
Indoor/Outdoor
Indoor or Outdoor
Base Unit of Measure
EA
Antenna Gain4/6 dBi
Diameter - Pole2 in
Product TypeOmni Antenna
Voltage Ratio< 2.0:1
Windage130 mph (210 km/h)
CompatibilityCisco 1562e;Cisco 1562ps;Cisco 1572eac;Cisco 1572ec;Cisco Catalyst 9124AXE;Cisco MR66;Cisco MR72;Cisco MR74;Cisco MR76;Mist AP61E
Impedance50 Ohms
Isolation Loss˃20dB
Class CodeA62
Harmonization Code8517710000
Sub Class CodeA62A620
Technology802.11ac, 802.11ax, 802.11n
Carton - SCC-14 Next Lower Level Sub Pack00662620435619
