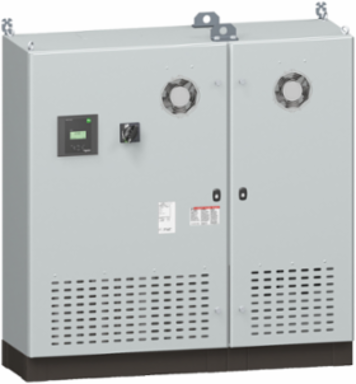

Schneider Electric VA050B41G60 PowerLogic PFC Capacitor Bank 50 kvar 600 V AC 60 Hz, NEMA 1

PowerLogic PFC Capacitor Bank 50 kvar 600 V AC 60 Hz, NEMA 1
  • MPN: VA050B41G60
  • PPN: SCH-VA050B41G60

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

Designed for enhanced power quality and energy efficiency, the Schneider Electric PFC Capacitor Bank is a robust solution for industrial applications. With a capacity of 50 kvar and a voltage rating of 600 V AC at 60 Hz, this capacitor bank effectively supports power factor correction, helping to optimize your electrical system's performance. Its NEMA 1 enclosure ensures adequate protection, making it well-suited for indoor installations. This unit stands out as a reliable choice for maintaining power stability and reducing energy costs in various operational settings.

Specifications

Reactive Power Rating
50 kvar
Breaking Capacity
50 kA
Step Composition
2x12.5 + 25
Tuning Factor
4.2
Maximum Permissible Voltage
1.1 x Un 8 hours over 24 hours
Net Weight
265 kg
Width
1300 mm
Mounting Location
Indoor
Controller Type
PowerLogic PFC Controller VPL12
Accessibility For Operation
front
Product Or Component Type
capacitor bank
Series Name
PowerLogic PFC Capacitor + Detuned Reactor
Eu Rohs Directive
Compliant
Rohs Exemption Information
Yes
Sustainable Offer Status
Green Premium product
Toxic Heavy Metal Free
Yes
Operating Altitude
<= 2000 m
Average Ambient Air Temperature For Operation
25 b0C annual, 35 b0C over 24 hours
Voltage600 V AC 60 Hz
Power Per Step12.5 kvar
Poles Description3P
Tuning Frequency252 Hz
Protection TypeCircuit breaker protection
Height1200 mm
Depth400 mm
NEMA Degree of ProtectionNEMA 1 with gasket
Device Short NamePowerLogic PFC detuned
Circularity ProfileENVEOLI2109003
Range Of ProductPowerLogic
Colourgrey RAL 7035
China Rohs RegulationProduct out of China RoHS scope
Product CertificationscCSAus
Mercury FreeYes
Relative Humidity0-95 %
Ambient Air Temperature For Operation-10 to 46 b0C
StandardsCSA C22.2 No 190-M1985, UL 810, UL 508 A
