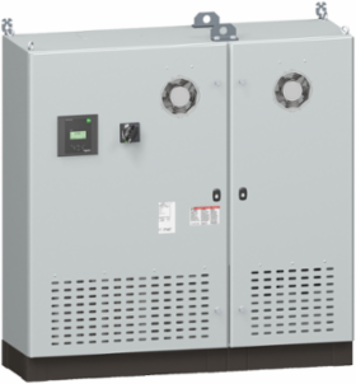

Schneider Electric VA075B41G60 PowerLogic PFC Capacitor Bank 75 kVar 600V 3-Phase Indoor

PowerLogic PFC Capacitor Bank 75 kVar 600V 3-Phase Indoor
  • MPN: VA075B41G60
  • PPN: SCH-VA075B41G60

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

The Schneider Electric PowerLogic PFC Capacitor Bank is designed to enhance power factor correction in 3-phase indoor applications, delivering an impressive capacity of 75 kVar at 600V. This capacitor bank is engineered for efficiency, allowing for improved energy management and reduced electricity costs. Its robust construction ensures reliable performance, making it an essential component for optimizing electrical systems and maintaining compliance with utility requirements. Elevate your power quality with this advanced solution from Schneider Electric, which is tailored for both durability and high functionality.

Specifications

Reactive Power Rating
75 kvar
Phase
3-Phase
Step Composition
25 + 50 kvar
Controller Type
PowerLogic PFC Controller VPL12
Tuning Frequency
252 Hz
Poles Description
3P
Weight
265 kg (584.23 lb)
Width
1300 mm (51.18 in)
Mounting Location
Indoor
Standards
CSA C22.2 No 190-M1985, UL 810, UL 508 A
Total Harmonic Distortion
0-7 %
Operating Altitude
<= 2000 m (<= 6561.68 ft)
Average Ambient Air Temperature for Operation
25 °C annual, 35 °C over 24 hours
Material
Gray RAL 7035 finish
Series Name
PowerLogic PFC Capacitor + Detuned Reactor
Voltage600 V AC 60 Hz
Power per Step25 kvar
Breaking Capacity50 kA
Operating ModeAutomatic
Tuning Factor4.2
Maximum Permissible Voltage1.1 x Un (8 hours over 24 hours)
Height1200 mm (47.24 in)
Depth400 mm (15.75 in)
NEMA Degree of ProtectionNEMA 1 with gasket
CertificationscCSAus
Relative Humidity0-95 %
Ambient Air Temperature for Operation-10 to 46 °C (14 to 115 °F)
ComplianceGreen Premium, REACh, EU RoHS, China RoHS, Toxic Heavy Metal Free, Mercury Free, RoHS Exemption Yes
Product TypeCapacitor Bank
Accessibility For OperationFront
