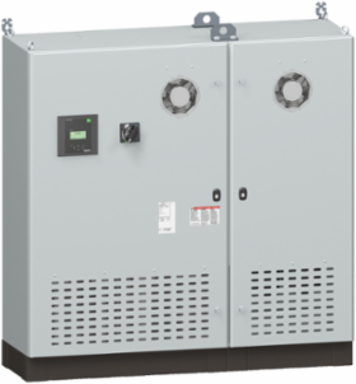

Schneider Electric VA075M41G60 PowerLogic PFC Capacitor Bank 75 kVAR 600V 3P Automatic Indoor

PowerLogic PFC Capacitor Bank 75 kVAR 600V 3P Automatic Indoor
  • MPN: VA075M41G60
  • PPN: SCH-VA075M41G60

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

The Schneider Electric VA075M41G60 PowerLogic PFC Capacitor Bank is engineered to enhance energy efficiency in industrial applications, providing a robust 75 kVAR of reactive power compensation at a voltage rating of 600V. This three-phase capacitor bank automates power factor correction, thereby optimizing electrical performance while reducing energy costs. Designed for indoor installations, it ensures reliable operation and seamless integration into existing systems, making it an essential component for facilities looking to improve their power quality and operational efficiency.

Specifications

Voltage
600 V AC 60 Hz
Power Per Step
25 kvar
Phases
3P
Tuning Factor
4.2
Step Composition
25 + 50
Dimensions (H x W x D)
1200 mm x 1300 mm x 400 mm (47.24 in x 51.18 in x 15.75 in)
Mounting Location
indoor
Operating Temperature Range
-10 to 46 °C (14 to 115 °F)
Operating Altitude
<= 2000 m (6561.68 ft)
Compliance
CSA C22.2 No 190-M1985, UL 810, UL 508 A, cCSAus
Reactive Power Rating75 kvar
Rated Short-Time Withstand Current65 kA 4 cycles
Tuning Frequency252 Hz
Operating Modeautomatic
Protection Typemain lug
Net Weight265 kg (584.23 lb)
NEMA Degree of ProtectionNEMA 1 with gasket
Relative Humidity0 to 95 %
ColorGray (RAL 7035)
RoHS ComplianceCompliant, Mercury free, Toxic heavy metal free
