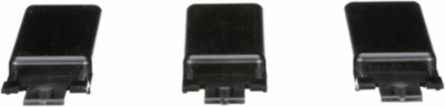

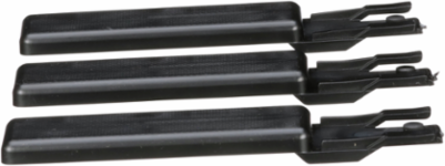

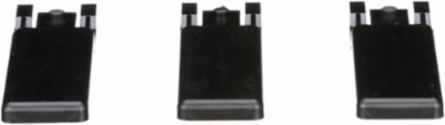

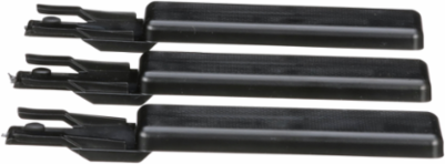

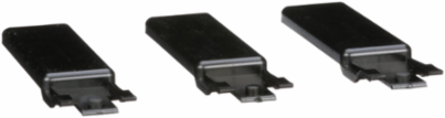

Schneider Electric HLW1BL I-Line Blank Plate Accessory Set of 3, 1.5 Inch x 6.35 Inch

I-Line Blank Plate Accessory Set of 3, 1.5 Inch x 6.35 Inch
I-Line Blank Plate Accessory Set of 3, 1.5 Inch x 6.35 Inch
I-Line Blank Plate Accessory Set of 3, 1.5 Inch x 6.35 Inch
I-Line Blank Plate Accessory Set of 3, 1.5 Inch x 6.35 Inch
I-Line Blank Plate Accessory Set of 3, 1.5 Inch x 6.35 Inch
  • MPN: HLW1BL
  • UPC: 785901535331
  • PPN: SCH-HLW1BL

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$19.89/ EA

    Description

    Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This I-Line, blank plate comes in a set of 3. Dimensions for this blank plate are 1.5 in (H) x 6.35 in (W) and weighs 0.16 kg. This product complys to CSA & UL standards.

    Specifications

    Offer Sustainability

    China Rohs Regulation
    Product out of China RoHS scope. Substance declaration for your information
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1407017EN
    Pvc Free
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Eu Rohs DirectiveCompliant with Exemptions

    Specifications

    Range Of Product
    I-Line
    Product Or Component Typeblank plate

    Complementary

    Height
    1.5 in
    Width
    6.35 in
    Quantity Per Setset of 3
    Net Weight0.16 kg
