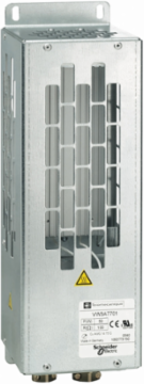

Schneider Electric VW3A7705 braking resistor, Altivar, IP20, 10Ohm, 1000W
Schneider Electric VW3A7705 braking resistor, Altivar, IP20, 10Ohm, 1000W
- MPN: VW3A7705
- PPN: SCH-VW3A7705
- UNSPSC: 26111515
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$780.98/ EA
Description
This braking resistor is an option for variable speed drives of the Altivar range and servo drives of the Lexium range. It dissipates the braking energy and enables maximum transient braking torque. It has an Ohmic value of 100Ohms at 20°C, and its protection index is IP20. The braking resistor continuous power is 1000W. Its protection index is IP20. It weighs 11kg and its dimensions are, 240mm wide, 484mm high, and 301mm deep. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Features
- Enable maximum transient braking torque
- Designed for machines with high inertia, driving loads, and machines with fast cycles
- Thermal protection via temperature-controlled switch or thermal overload relay
- Terminal electrical connection
- IP20 degree of protection
Specifications
Important Information Attributes
- Average Power Available
- 1 kW 50 °C, 1.15 kW 40 °C
- Ue Rated Operational Voltage2
- 24 V DC 0.1 A, 250 V AC 1 A
- Local Data Status
- Publishable
- Device Type
- Variable speed drive - VSD option & accessory
- Traceability
- No
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Persona Type Names
- End User
- Function Option
- Standard
- Market Segmentation
- Industrial
- Continuous Power
- 1000 W
- Package Weight Lbs
- 9.648 kg
- Product Or Component Type
- braking resistor
- Range Of Product
- Altivar
- Sustainable Packaging
- No
- Medium Desc
- braking resistor, Altivar, IP20, 10Ohm, 1000W
- Product Kit Identifier
- N
Electrical ConnectionM6 bar wire drive, terminal <= 2.5 mm² / AWG 14 temperature control switch
Ue Rated Operational Voltage524 V DC 0.1 A, 250 V AC 1 A
Local Publishable Date2026-01-12
ServiceabilityNo
Legacy WEEE ScopeOut
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Persona Type IdsEU
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Contact Resistance60 µOhm
Ohmic Value10 Ohm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protection Typethermal protection via drive or temperature control switch 120 °C
ReturnabilityYes
Accessory Separate Part Category2protection accessories
Stocking FlagY
Global Commercial StatusEnd of commerc. announced
Environment Attributes Main
- Take Back
- No, Nej
- Product Compatibility
- LXM32MC10N4, LXM32MD85N4, ATV312HD11M3, ATV312HD15M3, ATV61HD11M3X, ATV61HD37N4, ATV61HD55Y, ATV61HD75Y, ATV61WD45N4, ATV61WD45N4C, ATV71HD11M3X, ATV71HD37N4, ATV71HD45Y, ATV71HD55Y, ATV71WD37N4
- Reach Free SHVC
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -25-70 °C
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Ambient Air Temperature For Operation0-50 °C
IP Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- braking resistor
Range Of ProductAltivar
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 301 mm
