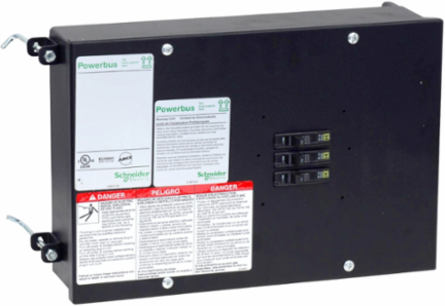

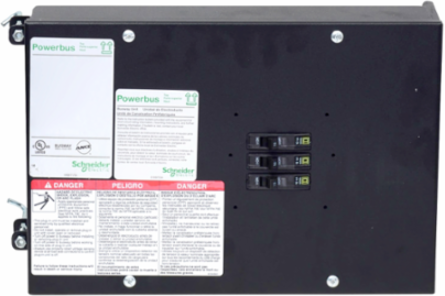

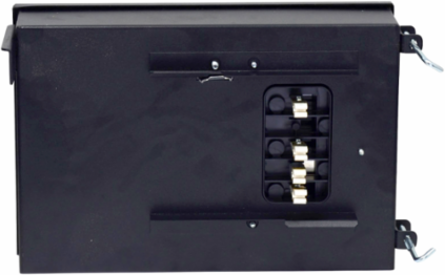

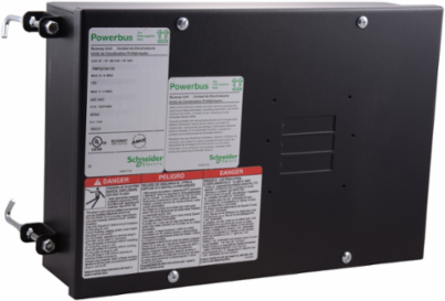

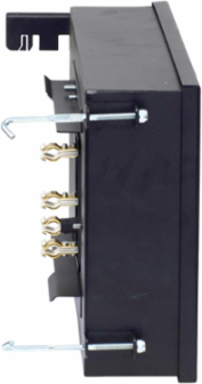

Schneider Electric PBPQO4A100 Plug-in unit, Powerbus 225 busway, 100A, 3 phase, for QO or QOB circuit breakers
Schneider Electric PBPQO4A100 Plug-in unit, Powerbus 225 busway, 100A, 3 phase, for QO or QOB circuit breakers
- MPN: PBPQO4A100
- UPC: 785901438700
- PPN: SCH-PBPQO4A100
- UNSPSC: 39131701
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1047.71/ EA
Description
Powerbus busway delivers scalable and flexible overhead power distribution. Simple modularity minimizes unintended downtime. Units are available in 100A, 225A, and 400A as well as up to 600V maximum rating. Powerbus busway uses the same Plug-in Units across all busway ampacities. This unit is Plug-in unit with circuit breakers that is rated at 100A. The busbar configuration for this plug-in unit is 4A. All busway rating are listed to UL 857 Busway Standard for Safety.
Features
- Scalable and flexible
- Highest tap-off density
- Simple modularity
- Easy to move, add or change Plug-in units
- UL 857 for Safety
Specifications
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Circuit Breaker Name
- QO/QOB, 3 ordered separately
- Package Weight Lbs
- 5.897 kg
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Provided Equipment
- without receptacle
- Returnability
- Yes
- Medium Desc
- Plug-in unit, Powerbus 225 busway, 100A, 3 phase, for QO or QOB circuit breakers
- Product Kit Identifier
- N
- Number Of Openings
- without opening
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI1312018EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Box Number4A L1 + L2 + N + L3
Energy Efficiency OptimizedFalse
Phase3 phase
Product Or Component Typeplug-in unit
Range Of ProductPowerbus
Sustainable PackagingNo
Stocking FlagY
Pep CodeENVPEP1312018EN
Global Commercial StatusCommercialised
Environment Attributes Main
- China ROHS Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI1312018EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP1312018EN
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1312018EN
General Attributes
- Phase
- 3 phase
- Provided Equipment
- without receptacle
Product Or Component Typeplug-in unit
Range Of ProductPowerbus
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
