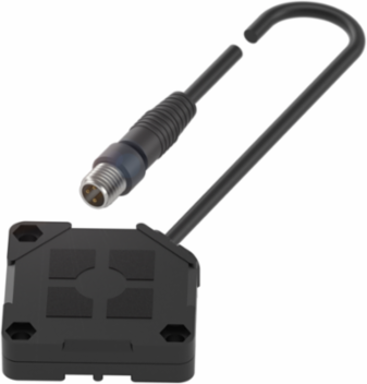

Balluff BCS Q40BBAA-PSCFHC-EP00,3-GS49 Capacitive Level Sensor, Q40 Series, IP67, -5 to 85°C
Balluff BCS Q40BBAA-PSCFHC-EP00,3-GS49 Capacitive Level Sensor, Q40 Series, IP67, -5 to 85°C
- MPN: BCS Q40BBAA-PSCFHC-EP00,3-GS49
- PPN: BAL-BCS0134
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$229.07/ EA
Description
The Balluff Q40 Series capacitive level sensor is designed for reliable and precise level detection in various applications. With a robust PBT housing and an IP67 rating, this sensor is well-suited for challenging environments, ensuring durability and performance even in harsh conditions. Operating within a voltage range of 10-30 VDC, it features a normally open PNP switching output and an adjustable sensitivity tailored to different media types, making it versatile for various industrial needs. Its compact dimensions of 40 x 40 x 10 mm allow for flush installation against container walls, while the integrated foam and residue compensation feature enhances its functionality in diverse media applications.
Specifications
Specifications
- Country of Origin
- Hungary
- Series
- Q40
- Connection
- Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR
- Switching frequency
- 10 Hz
- Function
- Smart Level 50
- Housing material
- PBT
- Ambient temperature
- -5...85 °C
- Approval/Conformity
- CE; UKCA; cULus; WEEE
Dimension40 x 40 x 10 mm
Installationflush with container outer wall
Switching outputPNP Normally open (NO)
Sensitivitymedia-dependent, adjustable
Additional featuresElectrically conductive media; Foam and residue compensation
Material sensing surfacePBT
Operating voltage Ub10...30 VDC
IP rating per IEC 60529IP67
