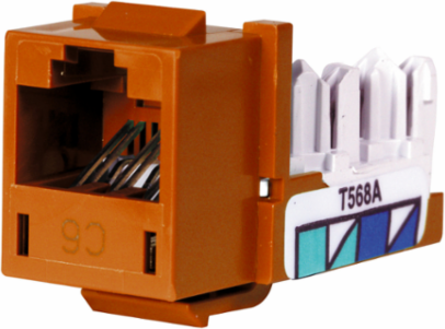

Bryant HXJ6OR XCELERATOR Cat 6 Telephone/Data Jack, 0.86 x 0.67 x 1.29 Inch, Thermoplastic
Bryant HXJ6OR XCELERATOR Cat 6 Telephone/Data Jack, 0.86 x 0.67 x 1.29 Inch, Thermoplastic
- MPN: HXJ6OR
- UPC: 662620825366
- PPN: HBL-HXJ6OR
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$16.18/ EA
Description
Telephone/Data, Jack, XCELERATOR, Cat 6
Features
- Third Party Verified Category 6 Component Compliant
- Exclusive 1-Punch Termination Reduces Termination Time by 75%
- Mating Cycles Exceed Industry Standard by Four Times
- Bulk Packaging Reduces Excess Waste on the Job
- Quick-Lace Termination
Specifications
Specifications
- Country of Origin
- United States
- Width
- 1.340 in
- Number of Pieces in Package
- 1
- Size
- 0.86 (22) x 0.67 ( 17) x 1.29 ( 33)
- Application
- Up to 5GBASE-T, 802.3bt POE
- Contact
- IDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Special Features
- Quick-Lace Termination
- Sub Brand
- XCELERATOR™
- Type
- Modular Jack
- Connectivity
- RJ45 Jack to IDC Punch Down
- Display Size
- Standard Sized Product
- Operating Cycles
- 2000 Plug
- Description - Invoice
- JACK, HXJ,CAT6,8POS,UNI A/B,OR
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- HPWALL2
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.6 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Case Weight
- 31.097 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 36.600 in
- Pallet Weight
- 229.200 lb.
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)ANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 6 Component, Third Party Verified
Standards - RoHS Compliance StatusCM
ColorOrange
Contact Resistance100 Ohm
MountingSnap-fit
StandardANSI/TIA/EIA-568 Category 6 component;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
Temperature RatingMax Continuous- 75° C, Minimum- -40° C Without Impact
Withstand Voltage1,000 Vac @ 60 Hz
Construction Material - MainThermoplastic
Mounting TypeSnap-fit
StyleRJ-45 Jack
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberFM636
Material - Mounting HardwareKeystone
SeriesXCELERATOR™ Series
BOX SIZE4.500x6.300x5.600 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack662620825366
Case - Total Units650 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70662620825365
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
