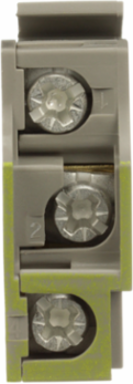

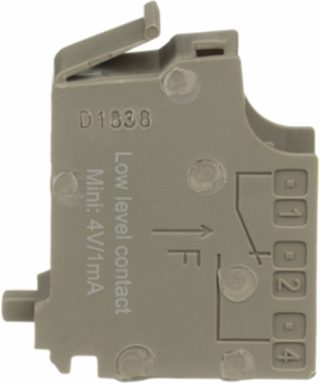

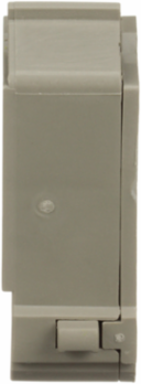

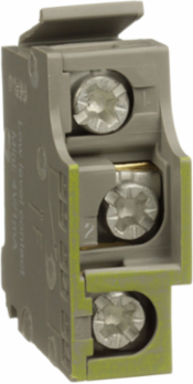

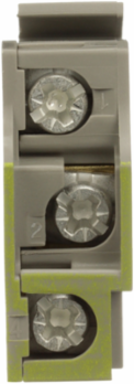

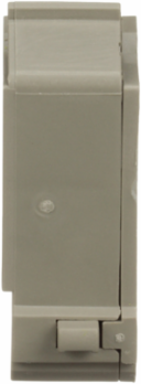

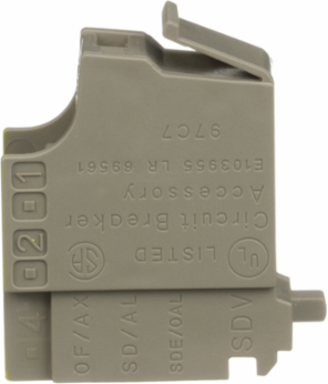

Circuit breaker accessory, PowerPacT H/J/L/M/P/R, auxiliary switch, OF/SD/SDE

Circuit breaker accessory, PowerPacT H/J/L/M/P/R, auxiliary switch, OF/SD/SDE - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/2dc7512b7e12dc5e6364a12b535a86d0609d1eff-medium.png

Documentation & Downloads

Square D S29452 Circuit breaker accessory, PowerPacT H/J/L/M/P/R, auxiliary switch, OF/SD/SDE

MPN: S29452
UPC: 785901942757
PPN: SCH-S29452

CAD

$697.20

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Loading dialog...

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The PowerPact™ J-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. J-frame circuit breakers are available with either thermal-magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104°F (40°C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This Powerpact auxiliary contact has a rated voltage of 24V, AC/DC. This product complys to UL listed & CSA standards. This auxiliary contact is compatable with H-frame, J-frame, L-Frame, M-frame, P-frame & R-Frame breakers.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product: PowerPact H || PowerPact J || PowerPact L || PowerPact M || PowerPact P || PowerPact R

Product Or Component Typeauxiliary switch

Complementary

Marking: SDE || SD || OF

Rated Voltage: 24-24 V AC/DC

Minimum Load1 mA 24 V

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP2304021EN

Toxic Heavy Metal Free: Yes

Circularity ProfileN/A

Mercury FreeYes

Pvc FreeYes

Eu Rohs DirectiveCompliant

Environment

Product Certifications: UL listed || CSA
