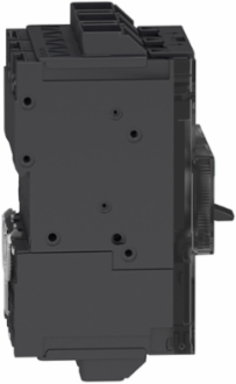

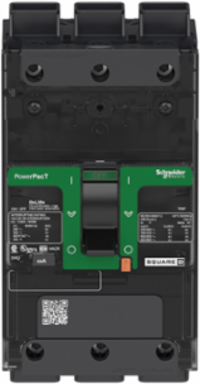

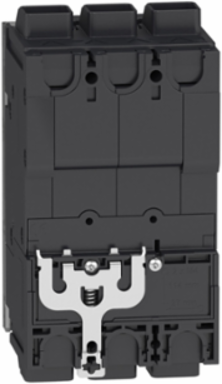

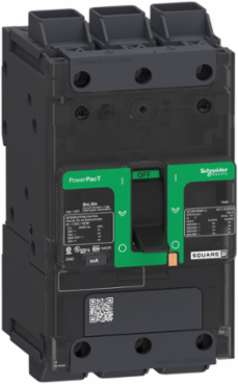

Schneider Electric BDL36100LU PowerPact B Circuit Breaker, 100A, 3 Pole, 600Y/347VAC, 14kA
Schneider Electric BDL36100LU PowerPact B Circuit Breaker, 100A, 3 Pole, 600Y/347VAC, 14kA
- MPN: BDL36100LU
- PPN: SCH-BDL36100LU
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2249.11/ EA
Description
The Schneider Electric BDL36100LU PowerPact B Circuit Breaker is designed for optimal performance in power distribution applications. This robust circuit breaker offers a reliable 100A capacity with three poles, making it suitable for systems operating at 600Y/347VAC. With a short-circuit protection rating of 14kA, it ensures enhanced safety and reliability, effectively safeguarding electrical circuits from overloads and surges. Its durable construction and dependable operation make it an essential component in modern electrical installations, catering to the needs of industrial and commercial environments alike.
Specifications
- Rated Current
- 100 A
- Rated Operational Voltage
- 525 V AC 50/60 Hz
- Breaking Capacity Code
- D
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Trip Unit Technology
- Thermal-magnetic TM-D
- Utilisation Category
- Category A
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Circuit Breaker Application
- HACR rated
- Wire Stripping Length
- 20 mm
- Tightening Torque
- 5-5 N.m AWG 14...AWG 4, 9-9 N.m AWG 3...AWG 3/0

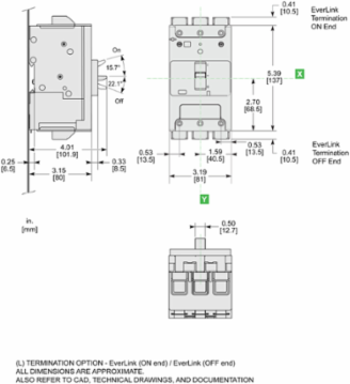

- Height
- 137 mm
- Net Weight
- 1.074 kg
- Color
- Gray (RAL 7016)
- IK Degree of Protection
- IK07 IEC 62262
- Ambient Air Temperature for Operation
- -25 to 70 6C
- Operating Altitude
- 2000 m without derating, 5000 m with derating
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
- Sustainable Offer Status
- Green Premium product
- PVC Free
- Yes
- RoHS Compliance
- Compliant with Exemptions
Voltage600Y/347 V AC
Breaking Capacity25 kA 220-240 V AC, 14 kA 500-525 V AC, 18 kA 380-415 V AC, 18 kA 440 V AC
Rated Insulation Voltage800 V IEC 60947-2
Continuous Current Rating80 %
Suitability for IsolationYes IEC 60947-2
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Number of Poles3P
Connection Pitch27 mm
AWG GaugeAWG 6 to AWG 2/0 fine stranded aluminum/copper, AWG 14 to AWG 3/0 rigid or stranded aluminum/copper
Depth80 mm
Width81 mm
MaterialNot specified
IP Degree of ProtectionFront cover IP40 IEC 60529
Pollution Degree3 IEC 60947-1
Ambient Air Temperature for Storage-50 to 85 6C
Quality LabelsCE
StandardsCSA C22.2 No 5, GB 14048.2, NMX J-266, UL 489, EN/IEC 60947-2, NEMA AB1, EN/IEC 60947-5-1
Mercury FreeYes
Halogen Content PerformanceHalogen free product
