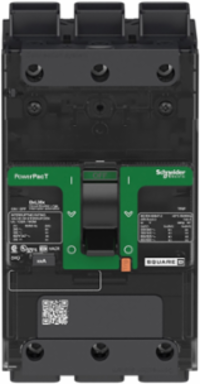

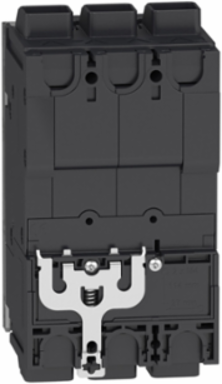

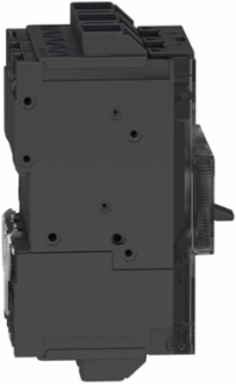

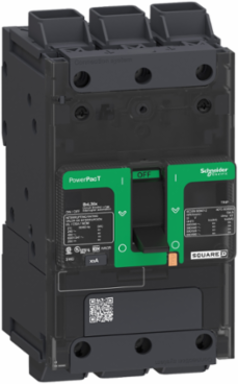

Schneider Electric BDL36110LU PowerPact B Circuit Breaker 110A 3 Pole 600Y/347VAC 14kA
Schneider Electric BDL36110LU PowerPact B Circuit Breaker 110A 3 Pole 600Y/347VAC 14kA
- MPN: BDL36110LU
- PPN: SCH-BDL36110LU
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3016.82/ EA
Description
Engineered for exceptional reliability in power distribution, the Schneider Electric BDL36110LU PowerPact B Circuit Breaker is a robust solution for safeguarding your electrical systems. With a current rating of 110A and a three-pole configuration, this device effectively manages 600Y/347VAC applications, ensuring optimal performance even in demanding environments. Featuring a fault interruption capacity of 14kA, it offers critical protection against overload and short-circuit events, making it an essential component for any modern electrical panel. Designed with precision and durability, this molded case circuit breaker is a testament to Schneider Electric's commitment to quality and innovation in circuit protection.
Specifications
- Rated Current
- 110 A
- Breaking Capacity
- 25 kA 220-240 V AC, 14 kA 500-525 V AC, 18 kA 380-415 V AC, 18 kA 440 V AC
- Rated Operational Voltage
- 525 V AC 50/60 Hz
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Continuous Current Rating
- 80 %
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Circuit Breaker Application
- HACR rated
- Connection Pitch
- 27 mm (1.06 in)
- Local Signalling
- Presence of auxiliary contact flag (green)
- Electrical Connection
- Everlink lug, line and load
- Power Wire Stripping Length
- 20 mm (0.79 in)
- Net Weight
- 1.074 kg (2.37 lb)
- Certifications
- UL, IEC, CCC, EAC, CSA, NOM
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- RoHS Compliance
- Compliant
- PVC Free
- Yes
- Device Application
- Distribution
- Number of Slots
- 1 auxiliary switch (plug-in) or 1 voltage release (plug-in) or 1 alarm switch (plug-in)
- Color
- Gray (RAL 7016)
Poles3
Breaking Capacity CodeD
Rated Insulation Voltage800 V IEC 60947-2
Trip Unit TechnologyThermal-magnetic TM-D
Utilisation CategoryCategory A
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Suitability for IsolationYes IEC 60947-2
AWG GaugeAWG 6 to AWG 2/0 fine stranded aluminum/copper, AWG 14 to AWG 3/0 rigid or stranded aluminum/copper
Mounting ModeClip-on 35 mm symmetrical DIN rail, By screws plate
Tightening Torque5 N.m (44.25 lbf.in) for AWG 14-4, 9 N.m (79.66 lbf.in) for AWG 3-3/0

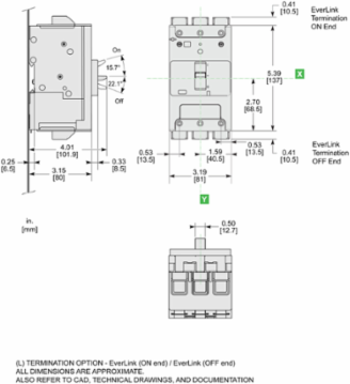

Dimensions (HxWxD)137 mm x 81 mm x 80 mm (5.39 in x 3.19 in x 3.15 in)
StandardsEN/IEC 60947-2, UL 489, CSA C22.2 No 5, NEMA AB1, NMX J-266, GB 14048.2, EN/IEC 60947-5-1
Quality LabelsCE
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m without derating, 5000 m with derating
Mercury FreeYes
Halogen Content PerformanceHalogen free product
Control TypeToggle
RangePowerPact B
