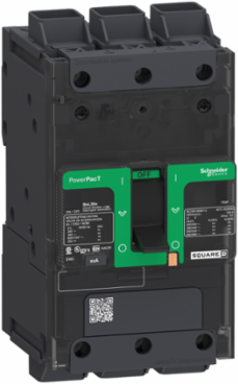

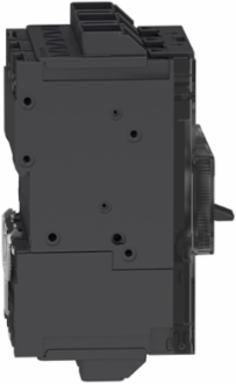

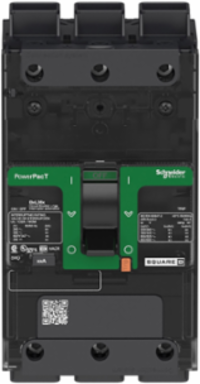

Schneider Electric BGL36125LU PowerPact B Circuit Breaker 125A 3 Pole 18kA
Schneider Electric BGL36125LU PowerPact B Circuit Breaker 125A 3 Pole 18kA
- MPN: BGL36125LU
- PPN: SCH-BGL36125LU
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3768.69/ EA
Description
The Schneider Electric BGL36125LU PowerPact B Circuit Breaker is engineered to provide dependable protection for electrical systems. With a robust 125A capacity and three-pole configuration, it is designed to handle significant power loads while ensuring safety and performance under varying conditions. This circuit breaker features an impressive interrupting capacity of 18kA, making it suitable for a variety of applications within power distribution settings. Ideal for those looking to enhance their electrical infrastructure, it represents a reliable solution for modern molded case circuit protection.
Specifications
- Rated Current
- 125 A
- Breaking Capacity
- 65 kA 208Y/120 V AC 50/60 Hz, 65 kA 240 V AC 50/60 Hz, 35 kA 480/277 V AC 50/60 Hz, 35 kA 480 V AC 50/60 Hz, 20 kA 250 V DC, 18 kA 600Y/347 V AC
- Rated Insulation Voltage
- 800 V IEC 60947-2
- Poles
- 3
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Continuous Current Rating
- 80 %
- Wire Stripping Length
- 20 mm (0.79 in)
- Tightening Torque
- 5 N.m (44.25 lbf.in) for AWG 14 to AWG 4, 9 N.m (79.66 lbf.in) for AWG 3 to AWG 3/0

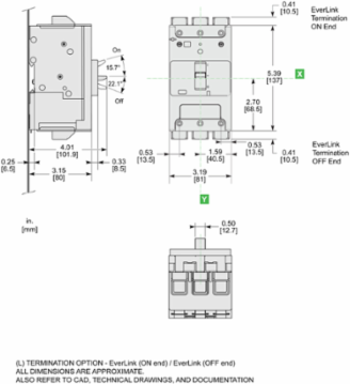

- Width
- 81 mm (3.19 in)
- Depth
- 80 mm (3.15 in)
- Circuit Breaker Application
- HACR rated
- Local Signalling
- Presence of auxiliary contacts (green flag)
- Color
- Gray RAL 7016
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Sustainable Offer Status
- Green Premium product
- PVC Free
- Yes
- RoHS Directive
- Compliant with Exemptions
Rated Service Breaking Capacity65 kA 220...240 V AC, 18 kA 500...525 V AC, 35 kA 380...415 V AC, 35 kA 440 V AC
Rated Operational Voltage525 V AC 50/60 Hz
Trip Unit TechnologyThermal-magnetic TM-D
Pollution Degree3 IEC 60947-1
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Connection Pitch27 mm (1.06 in)
AWG GaugeAWG 6 to AWG 2/0 fine stranded aluminum/copper, AWG 14 to AWG 3/0 rigid or stranded aluminum/copper

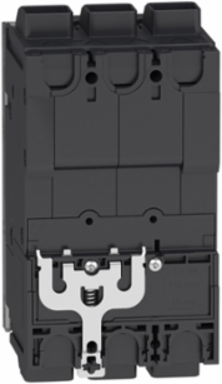

Mounting ModeClip-on 35 mm symmetrical DIN rail, By screws plate
Height137 mm (5.39 in)
Net Weight1.074 kg (2.37 lb)
Utilisation CategoryCategory A
Number of Slots1 auxiliary switch OF plug-in, 1 voltage release MN or MX plug-in, 1 alarm switch SD plug-in
Quality LabelsCE
StandardsNMX J-266, EN/IEC 60947-5-1, NEMA AB1, GB 14048.2, EN/IEC 60947-2, CSA C22.2 No 5, UL 489
IK Degree of ProtectionIK07 IEC 62262
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude2000 m (6561.68 ft) without derating, 5000 m with derating
Mercury FreeYes
Halogen Content PerformanceHalogen free product
