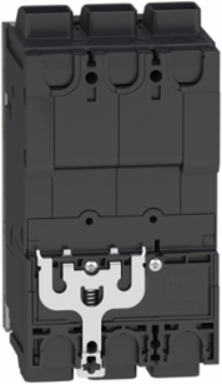

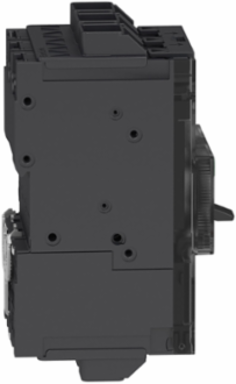

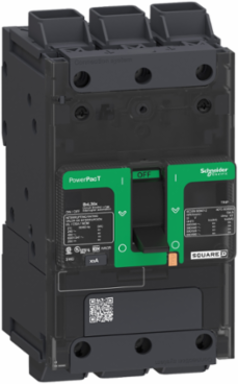

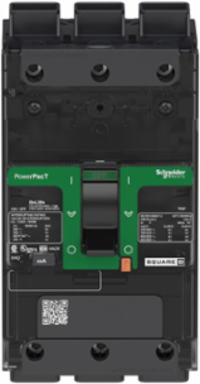

Schneider Electric BGL36060LU Circuit breaker, PowerPacT B, 60A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end
Schneider Electric BGL36060LU Circuit breaker, PowerPacT B, 60A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end
- MPN: BGL36060LU
- PPN: SCH-BGL36060LU
- UNSPSC: 39121601
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2365.57/ EA
Description
Circuit breaker, PowerPacT B, 60A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end
Features
- Available in 1, 2, 3, and 4 pole for unit mounts
- Available in 1, 2, and 3 pole for I-Line
- Dual rated AC/DC with 3 levels of breaking capacity
- A wide range of accessories, auxiliaries, and lug connections available
- UL, CSA, NOM, IEC, CCC certified, and CE marked
Specifications
Physical Attributes
- Color
- Gray RAL 7016)
Wire Stripping Length20 mm
Conformance Attributes
- Product Certifications
- UL, IEC, CCC, EAC, CSA, NOM
StandardsEN/IEC 60947-5-1, NEMA AB1, UL 489, CSA C22.2 No 5, NMX J-266, EN/IEC 60947-2, GB 14048.2
Complementary Attributes
- Line Rated Current
- 60-60 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- AWG Gauge
- AWG 6...AWG 2/0 fine stranded aluminium/copper, AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Mounting Mode
- clip-on 35 mm symmetrical DIN rail), by screws plate)
- Tightening Torque
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4), 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- Carbon Footprint Of The Distribution Phase A4
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.3764691440577449, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 326 kg CO2 eq., 325.86084321646615
- Local Data Status
- Publishable
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option
- Standard
- Connection Pitch
- 27 mm
- Control Type
- toggle
- Device Short Name
- BG 060
- Energy Efficiency Optimized
- False
- Local Signalling
- presence of auxiliary contacts flag green)
- Network Frequency
- 50/60 Hz
- Poles Description
- 3P
- Product Or Component Type
- circuit breaker
- Quality Labels
- CE
- Range
- PowerPact
- Suitability For Isolation
- yes IEC 60947-2
- Total Lifecycle Carbon Footprint
- 335 kg CO2 eq.
- Trip Unit Technology
- thermal-magneticTM-D,
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ui Rated Insulation Voltage2
- 800 V IEC 60947-2
- Medium Desc
- Circuit breaker, PowerPacT B, 60A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Global Commercial Status
- Commercialised
- Ue Rated Operational Voltage5
- 525 V AC 50/60 Hz UL 489
- Uimp Rated Impulse Withstand Voltage5
- 8 kV IEC 60947-2
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Electrical ConnectionEverlink lug, line, Everlink lug, load
Number Of Slots1 auxiliary switch OF plug-in), 1 voltage release MN or MX plug-in), 1 alarm switch SD plug-in)
Ics Rated Service Breaking Capacity265 kA 220...240 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The End Of Life Phase C1 To C42 kg CO2 eq., 2.1975777182170146
Carbon Footprint Of The Manufacturing Phase A1 To A37 kg CO2 eq., 6.906117954368554
Ics Rated Service Breaking Capacity565 kA 220...240 V AC 50/60 Hz IEC 60947-2, 18 kA 500...525 V AC 50/60 Hz IEC 60947-2, 35 kA 380...415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2
Local Publishable Date2025-11-13
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Circuit Breaker ApplicationHACR rated
Continuous Current Rating80 %
Device Applicationdistribution
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Halogen Free StatusHalogen free product
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Package Weight Lbs1.179 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protected Poles Description3t
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingYes
Trip Unit NameTM-D
Utilisation Categorycategory A
Ue Rated Operational Voltage2525 V AC 50/60 Hz UL 489
Uimp Rated Impulse Withstand Voltage28 kV IEC 60947-2
Stocking FlagY
Pep CodeENVPEP2311047EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Product NamePowerPact B
Ui Rated Insulation Voltage5800 V IEC 60947-2
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 335.34100803310946
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Disclosure
- ENVPEP2311047EN
- IP Degree Of Protection
- front cover IP40 IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2311047EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Operating Altitude6561.68 ft (2000 m) without derating, 5000 m with derating
Halogene PerformanceHalogen free product
Mercury FreeYes
9 MM Pitches9
Ambient Air Temperature For Storage-50-85 °C
Halogen Content PerformanceHalogen free product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- circuit breaker
Specifications
- Depth
- 80 mm
