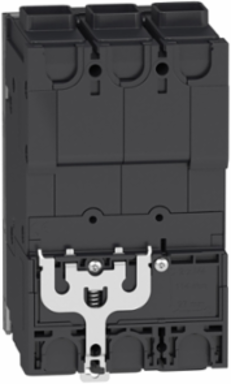

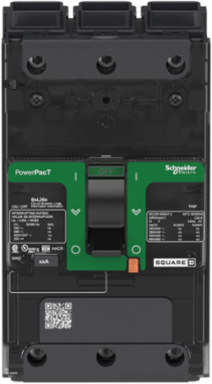

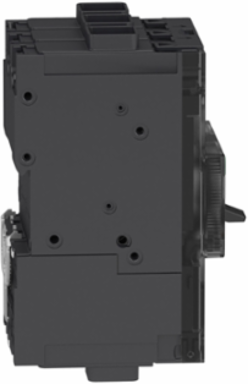

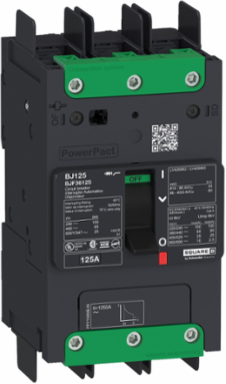

Schneider Electric BDF36070 PowerPacT B Circuit Breaker 70A 3 Pole 600Y/347VAC 14kA
Schneider Electric BDF36070 PowerPacT B Circuit Breaker 70A 3 Pole 600Y/347VAC 14kA
- MPN: BDF36070
- PPN: SCH-BDF36070
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2038.54/ EA
Description
This reliable circuit breaker from Schneider Electric is designed to provide robust protection in power distribution applications. The BDF36070 model features a 70A capacity with three poles, making it suitable for use in systems operating at 600Y/347VAC and capable of handling fault currents of up to 14kA. Engineered for efficiency and safety, this molded case circuit breaker is an essential component for maintaining electrical integrity and operational reliability in demanding environments.
Specifications
- Amperage
- 70 A
- Breaking Capacity
- 25 kA 208Y/120 V AC, 18 kA 240 V AC, 25 kA 480/277 V AC, 14 kA 480 V AC, 18 kA 600Y/347 V AC, 14 kA 250 V DC (UL 489)
- Continuous Current Rating
- 80 %
- Poles
- 3P
- Utilisation Category
- Category A
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- IP Degree of Protection
- Front cover IP40 IEC 60529
- Network Frequency
- 50/60 Hz
- Standards
- CSA C22.2 No 5, NEMA AB1, NMX J-266, EN/IEC 60947-5-1, EN/IEC 60947-2, GB 14048.2, UL 489
- RoHS Compliance
- Compliant with Exemptions
- PVC Free
- Yes
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Connection Pitch
- 27 mm (1.06 in)
- Height
- 137 mm (5.39 in)
- Net Weight
- 0.924 kg (2.04 lb)
- Tightening Torque
- 5 N.m (44.25 lbf.in) for AWG 14...AWG 4, 9 N.m (79.66 lbf.in) for AWG 3...AWG 3/0
- AWG Gauge
- AWG 14...AWG 8 aluminum/copper, AWG 6...AWG 3/0 aluminum/copper
- Operating Altitude
- 2000 m without derating, 5000 m with derating
- Device Application
- Distribution
- Product Or Component Type
- Circuit breaker
- Breaking Capacity Code
- D
- Number of Slots
- 1 auxiliary switch (OF plug-in), 1 voltage release (MN or MX plug-in), 1 alarm switch (SD plug-in)
Rated Operational Voltage525 V AC 50/60 Hz UL 489
Electrical Durability10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
Trip Unit TechnologyThermal-magnetic TM-D
Suitability For IsolationYes IEC 60947-2
Mechanical Durability15000 cycles IEC 947-1 Annex K ed 5.2
Pollution Degree3 IEC 60947-1
IK Degree of ProtectionIK07 IEC 62262
Circuit Breaker ApplicationHACR rated
Product CertificationsUL, IEC, CCC, EAC, CSA, NOM
Mercury FreeYes
Halogen Content PerformanceHalogen free product
Ambient Air Temperature for Storage-50 to 85 °C (-58 to 185 °F)
Width81 mm (3.19 in)
Depth80 mm (3.15 in)
Electrical ConnectionTerminal nut, ON and OFF end
Wire Stripping Length20 mm (0.79 in)
Mounting ModeClip-on 35 mm symmetrical DIN rail, By screws plate
ColorGray RAL 7016
RangePowerPact
Device Short NameBD 070
Control TypeToggle
