ILSCO

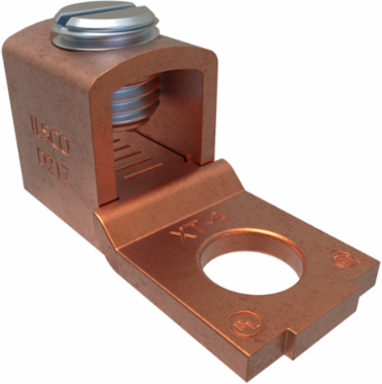

ILSCO XT-4 Copper Mechanical Lug, Conductor Range 4-14, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA

Copper Mechanical Lug, Conductor Range 4-14, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA
  • MPN: XT-4
  • UPC: 783669957556
  • PPN: ILC-XT-4

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$5.43/ EA

Description

Copper Mechanical Lug, Conductor Range 4-14, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA

Specifications

Voltage Rating
35 kV
Number of Poles
1
Number of Mounting Holes
1
Mounting Hole Type
Thru
Mounting Hole Diameter
0.265 in (6.731 mm)
Height
0.575 in (14.605 mm)
Tang Length
0.51 in (12.954 mm)
Tang Thickness
0.082 in (2.083 mm)
Weight
0.034 lb
Conductor Range CU Solid
10 Sol - 14 Sol
Wire Combinations
(2) 8 Str
Wire Binding Hardware Material
Steel
Wire Binding Screw Size
5/16
Conductor Material
Copper
Compliance
UL Listed, CSA Certified, RoHS, Prop 65 Compliant
CSA Standard
C22.2 No. 65-03
UL File Number
E6207
Number of Conductors
4, 2, 1
Direct Burial
No
NEMA Code
S-588-3
Temperature Rating90 C
Number of Ports / Wireways1
Drive TypeSlotted
Mounting Bolt/Stud Size1/4 in
Length1.12 in
Width0.5 in
Tang Width0.5 in (12.7 mm)
Tang Offset0.072 in (1.829 mm)
Conductor Range CU Stranded4 Str - 14 Str
Conductor TypeStranded
Wire Binding Torque10 - 14 AWG = 35
Wire Binding Hardware FinishZinc Clear Trivalent Chromate
Number of Wire Binding Screws per Port1
MaterialCopper
UL / CULUS SpecificationUL 486A/B Listed
CSA File NumberLR-29601
ColorCopper
Dual RatedNo
Contains DE-OX4No

Downloads
