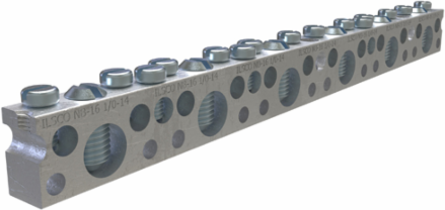

ILSCO NBCE-0615-2 Copper Neutral Bar, Large Conductor Range 1/0-14, Small Range 6-14, 6 Large Ports, 15 Small Ports, 2 Holes, #10 Bolt, UL, CSA
- MPN: NBCE-0615-2
- UPC: 783669005882
- PPN: ILC-NBCE-0615-2
CAD
$147.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Neutral Bar, Large Conductor Range 1/0-14, Small Range 6-14, 6 Large Ports, 15 Small Ports, 2 Holes, #10 Bolt, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.734 in | 18.6436 mm
- Weight
- 0.413 lbs
Length6.954 in | 176.6316 mm
Width0.375 in | 9.525 mm
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 1.133
- Drive Type Main
- Slotted
- Height (mm)
- 18.6436
- Mounting Bolt/Stud Size (mm)
- 254
- Mounting Hole Diameter (mm)
- 5.1562
- Mounting Hole Spacing (IN)
- 2.344
- Weight BX (LB)
- 8.51
- Width (mm)
- 9.525
Dimension G (mm)28.7782
Height BX (IN)2.8
Length (mm)176.6316
Mounting Hole Diameter (IN)0.203
Mounting Hole Position (IN)12 & 20
Mounting Hole Spacing (mm)59.5376
Width BX (IN)5.5
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 467 Listed, UL 486A/B Recognized
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Number of Conductors
- 1
- Number of Poles
- 1
Mounting Hole TypeThru
Number of Mounting Holes2
Number of Ports Tap15
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
- Wire Binding Hardware Material
- Steel
Connector FinishTin
Wire Binding Hardware FinishZinc Clear Trivalent Chromate
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Conductor Range CU Stranded (Primary, run, main, line)
- 1/0 Str - 14 Str
Conductor Range CU Solid (Secondary, tap, load)10 Sol - 14 Sol
Conductor Range CU Stranded (Secondary, tap, load)6 Str - 14 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Solid
General
- Bag Quantity
- 1
- Dual Rated
- No
- UPC Code
- 78366900588
Carton Quantity DescriptionSTD PACK QTY 20
NEMA CodeS-588-3
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- #10
- Wire Binding Screw Size
- 5/16
Number of Wire Binding Screws per Port1
Color
- Color
- Silver
