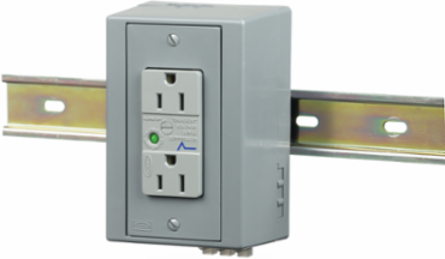

Hubbell Wiring Device-Kellems DRUBTVSS15 DIN Rail Utility Box, 15A 125V, 2-Pole 3-Wire, Gray, 5.62 Inch x 3.31 Inch x 2.54 Inch
Hubbell Wiring Device-Kellems DRUBTVSS15 DIN Rail Utility Box, 15A 125V, 2-Pole 3-Wire, Gray, 5.62 Inch x 3.31 Inch x 2.54 Inch
- MPN: DRUBTVSS15
- UPC: 783585108117
- PPN: HBL-DRUBTVSS15
- UNSPSC: 39121303
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$282.89/ EA
Description
DIN Rail Utility Box, Complete Unit- TVSS, DIN Rail Box, 15A TVSS, Gray.
Features
- It provides utility power to any control cabinet
- Optional auxiliary contacts for feed through capability
- Pre-wired "kits" are available for end-user customization
- 15A 125V, 2-Pole 3-Wire Grounding
Specifications
Specifications
- Engineering Drawing 1 Display Text
- DRUBTVSS15 AutoCAD Drawing
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Current / Amperage Rating
- 15 A
- Height
- 2.54 in
- Industry Standard(s)
- UL Listed
- Cable Entry
- Terminals
- Dielectric Strength
- Withstands 2,000V minimum
- Length
- 5.62 in
- Number of Poles
- 2-Pole
- Size
- 5.62 in x 3.31 in x 2.54 in
- Standard
- UL Listed
- Voltage Rating
- 125 V
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 1.1 lb.
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Description - Invoice
- DIN-R UTL BOX, 15A 125V, TVSS DUP, GY
- Harmonization Code
- 8536309999
- MSDS Flag
- No
- Material - Mounting Hardware
- Vertical Mount, DIN Rail Mount
- Current Rating
- 15 A
- BOX SIZE
- 6.495x12.745x9.375 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585108117
- Each - Pack Description
- Each
General Literature Asset 1 Display TextPulp & Paper Solutions
Country of OriginChina
Dimensions5.62 in x 3.31 in x 2.54 in
Horsepower - Maximum0.5
Amperage Rating15 A
ColorGray
KnockoutsNone
NEMA Rating5-15R
Number of Wires3-Wire
Special Features15A 125V, 2-Pole 3-Wire Grounding
TypeBox and Device
Width3.31 in
Voltage Rating Description125 V
Display SizeStandard Sized Product
Number Of Poles2-Pole
Class CodeA28
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA28A300
ConstructionMolded and Fabricated
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
