additional output module, Altivar, relay output, 24 to 30V DC, 1 screw terminal
Schneider Electric

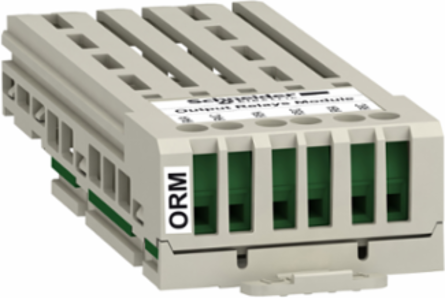

Schneider Electric VW3A3204 additional output module, Altivar, relay output, 24 to 30V DC, 1 screw terminal

  • MPN: VW3A3204
  • PPN: SCH-VW3A3204
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $387.78

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This extended module enables your drive to meet the needs of application that manage additional or specific sensors. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600, Altivar Process ATV900 and Altivar Machine ATV340. It is also compatible with Altivar Easy 610. It has one screw terminal block 1.5 mm² / AWG 16.

    Documentation & Downloads

    Specifications

    Key Specifications

    Discrete Output Number
    3
    Range Compatibility
    Altivar Machine ATV340 || Easy Altivar 610 || Altivar Process ATV900 || Altivar Process ATV600
    Input/Output Type
    3 relay output
    Discrete Output TypeR4, R5, R6) relay normally open 1-1 ms
    Product Or Component Typeadditional output module

    Complementary

    Minimum Switching Current
    5 mA 24 V DC
    Electrical Durability
    100000 cycles
    Net Weight
    0.4 kg
    Electrical Connectionscrew terminal block, 1.5 mm² / AWG 16, 0.5 N.m
    Maximum Switching Current2 A 250 V AC inductive, cos phi = 0.4 5 ms || 2 A 30 V DC inductive, cos phi = 0.4 5 ms || 5 A 250 V AC resistive, cos phi = 1 5 ms || 5 A 30 V DC resistive, cos phi = 1 5 ms

    Offer Sustainability

    China Rohs Regulation
    X
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP2010018EN
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold
