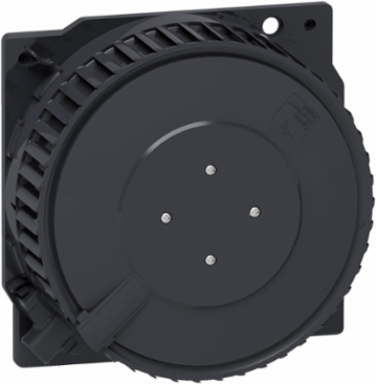

Schneider Electric NSYCVF550M115FB ClimaSys CVHD Outdoor Fan Box 550 m³/h 115V AC IP55
Schneider Electric NSYCVF550M115FB ClimaSys CVHD Outdoor Fan Box 550 m³/h 115V AC IP55
- MPN: NSYCVF550M115FB
- PPN: SCH-NSYCVF550M115FB
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$424.98/ EA
Description
Designed for robust outdoor applications, the ClimaSys CVHD outdoor fan box by Schneider Electric delivers impressive airflow of 550 m³/h, making it ideal for heavy-duty environments. With a durable construction that withstands ambient temperatures ranging from -40°C to 70°C, this fan box ensures reliable performance under extreme conditions. Its compact dimensions of 223 mm in height and width, along with a depth of 90 mm, allow for versatile installation options, while the IP55 rating offers protection against dust and water ingress. Engineered for efficiency, the fan operates within a power range of 78 to 102 W, and its noise level remains manageable at 60 dB, making it suitable for various industrial applications.
Specifications
Assets
- Cad
- https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=NSYCVF550M115FB_3D-CAD&p_File_name=NSYCVF550M115FB_2D-top.dxf
Physical Attributes
- Color
- dark grey RAL 7016)
Conformance Attributes
- Product Certifications
- CE, UL conforming to UL 508 A, CSA conforming to CSA C22.2, ecodesign directive 2009/125/EC
Complementary Attributes
- Line Rated Current
- 0.7-0.8 A 50 Hz
- Us Rated Supply Voltage
- 115 V AC +/- 10 %
Maximum Pressure300 Pa flow rate 0 m³/h
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Condition Of Use
- overfrequent filter replacement should be avoided, flow rates depends on the work point, see ProClima software, surrounding environment must be relatively clean, filter must be cleaned and replaced regularly, outside temperature must be 5 °C lower than inside temperature
- Carbon Footprint Of The Distribution Phase A4
- 4.954533831566484, 5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.27783457389102095, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Stocking Flag
- Y
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1107017EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option
- Standard
- Bearing Type
- ball
- Power Range
- 78...102 W
- Product Name
- ClimaSys CV
- Product Specific Application
- outdoor heavy duty
- Returnability
- No
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP110717EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Height Useful
- external: 223 mm
- Width Real
- external: 223 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 fanbox, 4 screw
Carbon Footprint Of The End Of Life Phase C1 To C44 kg CO2 eq., 3.728749175527124
Carbon Footprint Of The Manufacturing Phase A1 To A316 kg CO2 eq., 16.23540718026087
Medium DescClimaSys CVHD outdoor HD fan-box without grille and filter 550 m3/h 115VAC
Local Publishable Date2025-09-16
Return IndicatorN
Legacy Weee ScopeIn
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeYes
Without Single Use PlasticNo
Function Option IdSTANDARD
Product Kit IdentifierN
Noise Level60-60 dB
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typefanbox without grille and filter
RangeClimaSys
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint25 kg CO2 eq.
Connections Terminalsspring clamp terminal
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit Description"Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. "
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; France, FR
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; Europe, EU-27
Height Nominalexternal: 223 mm
Width Nominalexternal: 223 mm
Environment Attributes Main
- Air Flow
- free flow rate: 550 m3/h at 50 Hz, 550 m3/h at 60 Hz
- Take Back
- Nej
- China Rohs Regulation
- X
- Carbon Footprint
- 25.1965247612455
- Ambient Air Temperature For Storage
- -40-80 °C
- Environmental Disclosure
- ENVPEP110717EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
Ip Degree Of ProtectionIP55 grid:, IP44
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Circularity ProfileENVEOLI1107017EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP110717EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- fanbox without grille and filter
ETIM
- ETIM 8
- EC000320
ETIM 9EC000320
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 115 V AC 50/60 Hz
Specifications
- Height
- 8.78 in
Width8.78 in
