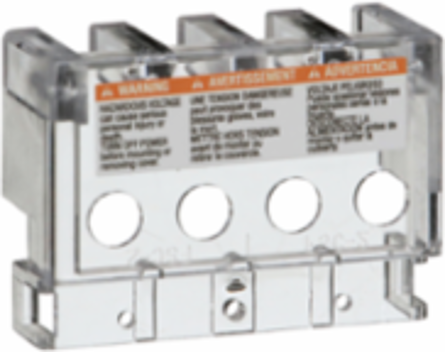

Square D 9070FSC2 Transformer Terminal Cover Kit, 2 Covers, for D1-D32, 250-5000 VA
- MPN: 9070FSC2
- UPC: 785901904755
- PPN: SCH-9070FSC2
CAD
$23.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Control power transformers from Schneider Electric set the industry standard for design innovation and performance. This industrial control transformer, Terminal Cover has been certified by UL,CSA, cUL listed, CE & NOM standards. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. This Transformer's Product Compatability for use with D1, D2, D3, D4, D5, D13, D14, D33, D37, D15, D20, D23, D31, D32 with a power rating of 250-5000 VA and comes in 1 set of 10, (set of 2). They are designed with low impedance windings for excellent voltage regulation, and can accomodate the high inrush current associated with contactors, starters, solenoids, and relays.
Features
- This terminal cover kit is purpose-built to convert standard open terminals into a finger-safe (IP20) configuration, preventing accidental contact with live electrical parts. By installing these covers, you ensure your industrial control system meets rigorous NEC and OSHA safety standards, protecting maintenance personnel from hazardous shocks during routine inspections.
- Specifically engineered for the Schneider Electric (Square D) 9070 Type T control power transformer line, this kit provides a snap-on, precision fit that generic covers can't match. The tailored design ensures complete coverage of the primary and secondary terminals, eliminating gaps where tools or fingers could slip through and cause a catastrophic short circuit.
- Molded from premium, flame-retardant thermoplastic, the 9070FSC2 is designed to endure the high temperatures and vibrations common in motor control centers and manufacturing floors. The durable material resists cracking and chemical degradation, ensuring your terminal protection remains intact over the entire lifespan of the transformer without needing frequent replacements.
- The user-friendly, snap-on design allows for rapid installation without the need for specialized tools or hardware. This significantly reduces labor time during panel assembly or field retrofits, allowing industrial electricians to secure live terminals in seconds while maintaining a clean, professional appearance within the electrical enclosure.
Documentation & Downloads
Specifications
Additional
- Power Rating
- 250-5000 VA
- Height
- 1.669 in (42.39 mm)
- Depth
- 0.992 in (25.20 mm)
- Material Safety
- PVC Free, Toxic Heavy Metal Free, Mercury Free, RoHS Compliant, Reach Free of SVHC
- Quantity Per Set
- 2
- Country of Origin
- US
Product CompatibilityD1 250-5000 VA, D2 250-5000 VA, D3 250-5000 VA, D4 250-5000 VA, D5 250-5000 VA, D13 250-5000 VA, D14 250-5000 VA, D33 250-5000 VA, D37 250-5000 VA, D15 250-5000 VA, D20 250-5000 VA, D23 250-5000 VA, D31 250-5000 VA, D32 250-5000 VA
Width2.374 in (60.30 mm)
Protection TypeFingersafe
ComplianceUL Listed, CSA Certified, cUL Listed, CE, NOM
Product TypeCover
