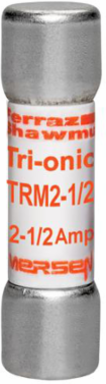

Mersen TRM2-1/2 Fuse Tri-Onic® 250V 2.5A Time-Delay Midget 1.5 Inch x 0.41 Inch Dimensions
- MPN: TRM2-1/2
- UPC: 782001743338
- PPN: FER-TRM2-1/2
CAD
$5.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tri-Onic® TRM time-delay midget fuses are rated 250 volts AC and are offered in ampere ratings from 1/10 to 30A. They have 12 seconds time-delay at 200% rating to provide supplemental protection of small motors, small transformers and other high inrush loads, plus many other 250 volt applications. (Not for Branch Circuit Protection).
Specifications
Key Specifications
- Rated voltage AC UL
- 250 V
- Ampere Rating
- 2.5 A
- AC or DC
- AC
- Speed/Characteristic
- Time Delay
- AC Max I.R./Breaking Capacity: I1
- 10 kA
- Connection/Terminal Type
- Ferrule
- Length
- 1.5 in
Frequency (Hz)50/60 Hz
ROHS CompliantYes
Fuse ClassMidget
MountingClip
Connection/Terminal MaterialTin-Plated Copper
Body/Insulating MaterialGMG
Weight0.013 lb
