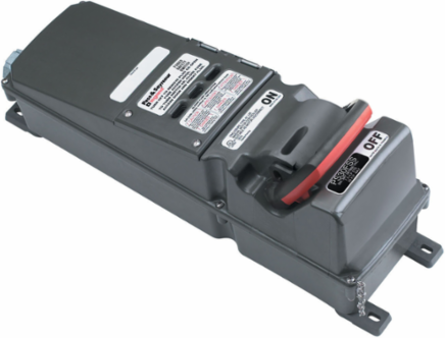

Pass & Seymour PS60FSS Fusible Safety Switch, 60 Amp, 600 VAC, LED Indicators, Stainless Steel
Pass & Seymour PS60FSS Fusible Safety Switch, 60 Amp, 600 VAC, LED Indicators, Stainless Steel
- MPN: PS60FSS
- UPC: 785007101027
- PPN: P-S-PS60FSS
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2382.79/ EA
Description
Fusible Safety Switch, 60 Amps, 600 VAC. The first-ever blown-fuse indication system thats in our pacesetting Fusible Mechanical Interlocks with individual LED indicators for each line, patent-pending integral fuse pullers, and a hinged fuse-access door. Pass and Seymour Fusible Safety Switches deliver the same ultra-heavyduty construction as our Fusible Mechanical Interlocks, too. So they provide maximum protection against water, dirt, heat, and vibration and just about any other harsh condition youll encounter.
Features
- Compact design fits in most I-beams to provide mounting versatility, easy access, and reduced possibility of impact damage.
- Corrosion-resistant, stainless steel captive screws speed installation, minimize risk of lost parts, and withstand abuse.
- Captive, quick-release, stainless steel screws speed fuse removal, ensure a watertight access door seal, and won't fall out.
- Time-saving LED indicators identify blown fuses at a glance.
- Heavy-duty steel-geared switch mechanism provides enhanced durability and extra-long service life.
- Heavy-duty, ergonomic switch handle meets OSHA Lockout/Tagout requirements and provides plenty of grip for sure, easy operation.
- Black/red color coding and high-visibility ON/OFF markings clearly indicate status from a distance and at any visual angle.
- Separate door for ease of changing fuses.
- Durable, stainless steel cover-retaining chain makes installation and maintenance more convenient.
Specifications
Specifications
- Country of Origin
- United States
- Finish
- Matte
- Product Line
- Pass & Seymour
- Features
- Durable
- Type
- Safety Switch
- Connection
- Hardwired
- Enclosure Type
- NEMA 12
- Enclosure Type
- Plastic
- Features
- Corrosion Resistant
- Horsepower Rating
- 3 HP @ 120 VAC
- Horsepower Rating
- 10 HP @ 240 VAC
- Horsepower Rating
- 20 HP @ 480 VAC
- Horsepower Rating
- 20 HP @ 3ø 240 VAC
- Horsepower Rating
- 20 HP @ 3ø 600 VAC
- Horsepower Rating
- 40 HP @ 3øY 277/480 VAC
- Maximum Horsepower Rating
- 50 HP @ 3øY 347/600 VAC
ColorGray
MaterialVALOX
Amperage60.0 A
StandardUL Listed
FeaturesWatertight
Voltage120 to 600 V
Enclosure TypeNEMA 4X
Wiring LocationBottom
Application SectorIndustrial
Horsepower Rating10 HP @ 208 VAC
Horsepower Rating15 HP @ 277 VAC
Terminal Accommodation#14 AWG - #10 AWG
Horsepower Rating20 HP @ 3ø 480 VAC
Horsepower Rating20 HP @ 3øY 120/208 VAC
Horsepower Rating50 HP @ 3øY 347/600 VAC
Special FeaturesImpact, chemical resistant, non conductive retaining screw, brass male/female contacts
