Klein Tools

Klein Tools 1628-16 Chicago Grip for EHS Cable, 0.31 to 0.62 Inch Diameter, Max Load 15,000 lb

Chicago Grip for EHS Cable, 0.31 to 0.62 Inch Diameter, Max Load 15,000 lb
  • MPN: 1628-16
  • UPC: 092644470264
  • PPN: KLT-1628-16
  • UNSPSC: 46182308

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1813.32/ EA

Description

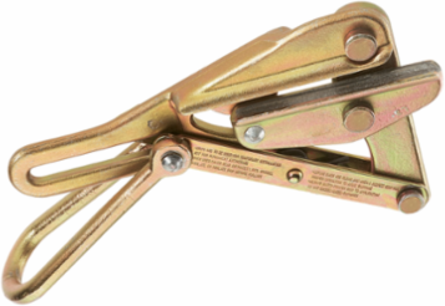

The Klein Tools 1628-16 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

  • Designed for 0.31 to 0.62-Inches (7.9 to 15.7 mm) diameter cable sizes with max safe load of 15,000 (6803 kg)
  • Double ''V'' grooves give four-point contact, reducing slipping and providing proper alignment of wire and cable
  • For larger conductors, see our grips with round inside-jaw contour
  • Locking handle keeps jaw open while grip is placed on cable with a hot stick
  • Made in USA

Specifications

Specifications

Material
Steel
Cable Diameter
0.31" to 0.62" (7.87 to 15.75 mm)
Application
Wire Pulling
Locking Handle
Yes
Spring
No
Teeth Type
Smooth
Jaw Length (cm)
18.4
Jaw Length (Inch)
7.25
Weight (lb)
13.7
Width
6.6380 in
Weight
13.7250 lbs
TypeChicago Grip
Jaw TypeDouble V
Cable TypeAircraft, EHS, Messenger, Guy Strand
Hot LatchNo
Swing LatchNo
Weight (kg)6.2
Maximum Safe Load (kg)6803.9
Maximum Safe Load (lb)15000
Height3.1500 in
Depth12.8250 in
