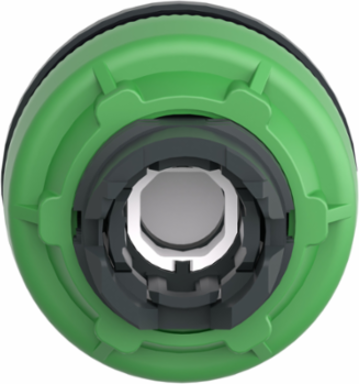

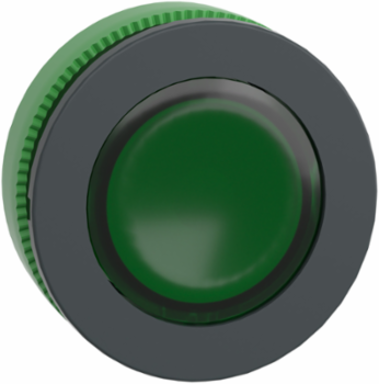

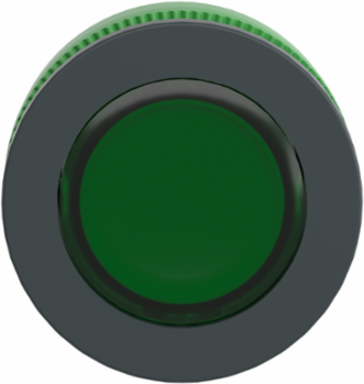

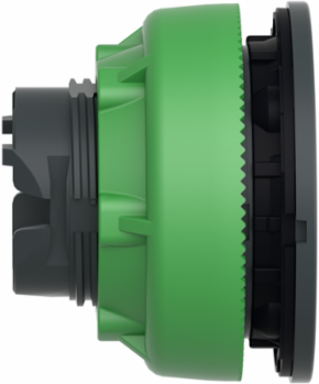

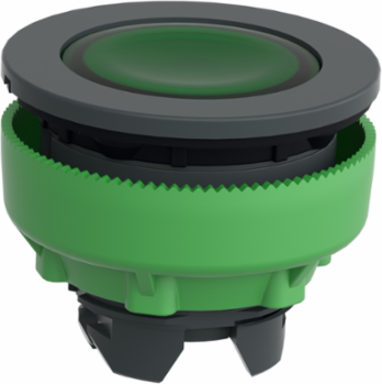

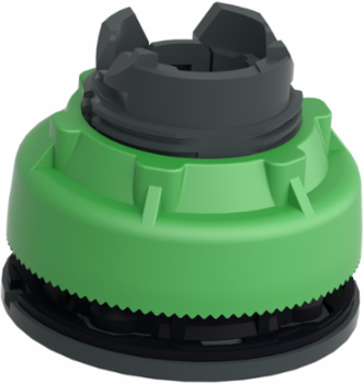

Schneider Electric ZB5FW333 Head for illuminated push button, Harmony XB5, green, white, 30mm, universal LED, plain lens
Schneider Electric ZB5FW333 Head for illuminated push button, Harmony XB5, green, white, 30mm, universal LED, plain lens
- MPN: ZB5FW333
- PPN: SCH-ZB5FW333
- UNSPSC: 39122221
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$29.14/ EA
Description

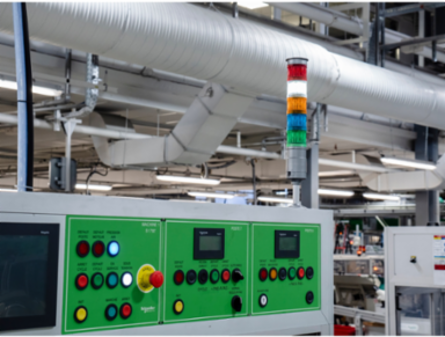

This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Features
- Compatible with universal LED block to be used for all colors
- Improved color intensity and brightness
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Large set of accessories to customize your panels
Specifications

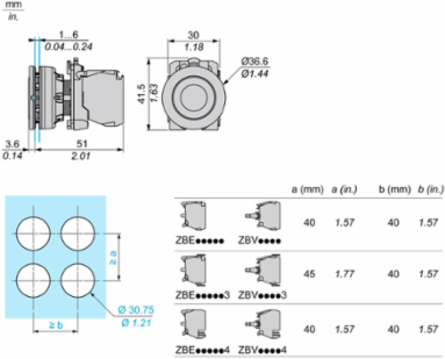

Physical Attributes
- Cad Overall Depth
- 30 mm
- Cad Overall Width
- 37 mm
Cad Overall Height37 mm
Cap Operator Or Lens Colorgreen
Conformance Attributes
- Product Certifications
- CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
StandardsIEC 60947-5-1, IEC 60947-5-4, CSA C22.2 No 14, GB 14048.5, JIS C8201-5-1, UL 508, IEC 60947-1, JIS C8201-1, ISO 21702, ISO 22196:2011
Important Information Attributes
- Customizable
- 1, no
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0 kg CO2 eq., 0.0201374415
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.1 kg CO2 eq., 0.1380269006
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Average Percentage Of Recycled Metal Content
- 29 %
- Bezel Material
- dark grey plastic
- Compatibility Code
- ZB5
- GCR Bridge
- ZB5FWCUST03
- Head Type
- built-in-flush
- Main Group
- illum push-button
- Mechanical Durability
- 10000000 cycles
- Operator Additional Information
- with plain lens
- Overvoltage Category
- class II conforming to IEC 60536
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shape Of Signaling Unit Head
- round
- Total Lifecycle Carbon Footprint
- 0.2 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Stocking Flag
- N
- Pep Code
- ENVPEP1710010_V2
- Pep Verification Date
- 2022-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
- Energy Model End Of Life C1 C4 2
- Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
Electrical Composition CodeM1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED
Carbon Footprint Of The Distribution Phase A40.0030076199, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0001709263, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-01-12
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2404014EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
Without Single Use PlasticYes
Return IndicatorY
Average Percentage Of Recycled Plastic Content16 %
Cap Operator Or Lens Colorgreen
Device Short NameZB5
Group Of Productflush push integral LED
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Markingunmarked
Mounting Diameter30.5 mm
Operator Profilegreen flush, unmarked
Package Weight Lbs23.0 g
Product Or Component Typehead for illuminated push-button
Range Of ProductHarmony XB5
ReturnabilityYes
Sustainable PackagingYes
Type Of Operatorspring return
Medium DescHead for illuminated push button, Harmony XB5, green, white, 30mm, universal LED, plain lens
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionPushbutton is used to push the transmission mechanism to make the moving contact and the static contact press on or off and realize circuit switching. An illuminated pushbutton switch uses a small LED to emphasise the “ON” position over 10 years of product lifetime with 70% use rate.& 10& 10Product Standards:& 10UL 508& 10EN/IEC 60947-5-1; EN/IEC 60947-5-4; EN/IEC 60947-1& 10JIS C8201-5-1; JIS C8201-1
Energy Model Manufacturing A1 A3 2Energy model used: Espagnac (France)
Energy Model Use B6 2Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C
- Circularity Profile
- ENVEOLI2404014EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- universal LED
- Pep Code
- ENVPEP1710010_V2
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of ProtectionNEMA 13, NEMA 4X
Recycled Metal Content At Cr Level29 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.1613428883
Ambient Air Temperature For Storage-40-70 °C
Environmental DisclosureENVPEP1710010_V2
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- head for illuminated push-button
Range Of ProductHarmony XB5
Overview Attributes
- Device Presentation
- basic element
