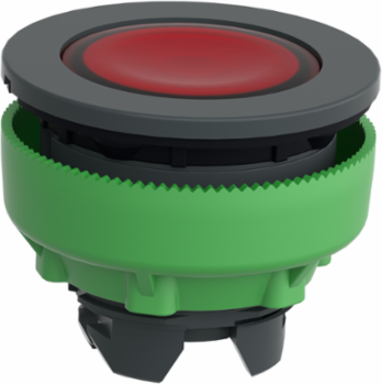

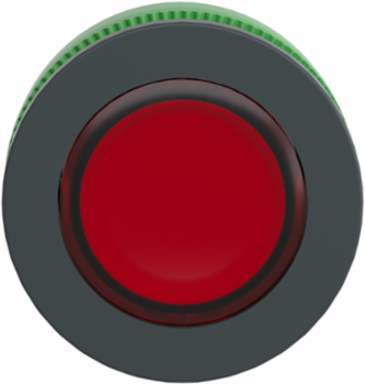

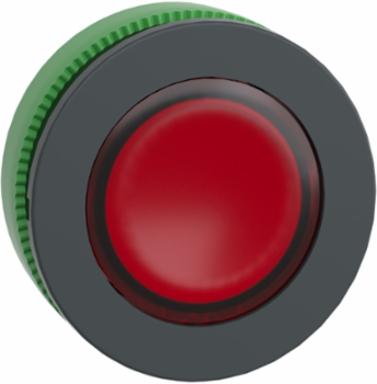

Schneider Electric ZB5FW343 Head for illuminated push button, Harmony XB5, red, 30mm, universal LED, plain lens
Schneider Electric ZB5FW343 Head for illuminated push button, Harmony XB5, red, 30mm, universal LED, plain lens
- MPN: ZB5FW343
- PPN: SCH-ZB5FW343
- UNSPSC: 39122221
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$29.14/ EA
Description
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Features
- Compatible with universal LED block to be used for all colors
- Improved color intensity and brightness
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Large set of accessories to customize your panels
Specifications
Physical Attributes
- Cad Overall Depth
- 30 mm
- Cad Overall Width
- 37 mm
Cad Overall Height37 mm
Cap Operator Or Lens Colorred
Conformance Attributes
- Product Certifications
- CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
StandardsIEC 60947-5-4, UL 508, GB 14048.5, IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-1, ISO 21702, ISO 22196:2011
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0 kg CO2 eq., 0.0201374415
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.1 kg CO2 eq., 0.1380269006
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Average Percentage Of Recycled Plastic Content
- 16 %
- Cap Operator Or Lens Color
- red
- Device Short Name
- ZB5
- Group Of Product
- flush push integral LED
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Marking
- unmarked
- Mounting Diameter
- 30.5 mm
- Operator Profile
- red flush, unmarked
- Package Weight Lbs
- 23 g
- Product Or Component Type
- head for illuminated push-button
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Type Of Operator
- spring return
- Medium Desc
- Head for illuminated push button, Harmony XB5, red, 30mm, universal LED, plain lens
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Pushbutton is used to push the transmission mechanism to make the moving contact and the static contact press on or off and realize circuit switching. An illuminated pushbutton switch uses a small LED to emphasise the “ON” position over 10 years of product lifetime with 70% use rate.& 10& 10Product Standards:& 10UL 508& 10EN/IEC 60947-5-1; EN/IEC 60947-5-4; EN/IEC 60947-1& 10JIS C8201-5-1; JIS C8201-1
- Energy Model Manufacturing A1 A3 2
- Energy model used: Espagnac (France)
- Energy Model Use B6 2
- Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
- Global Commercial Status
- Commercialised
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeM1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED
Carbon Footprint Of The Distribution Phase A40.0030076199, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0001709263, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-01-12
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2404014EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Average Percentage Of Recycled Metal Content29 %
Bezel Materialdark grey plastic
Compatibility CodeZB5
GCR BridgeZB5FWCUST03
Head Typebuilt-in-flush
Main Groupillum push-button
Mechanical Durability10000000 cycles
Operator Additional Informationwith plain lens
Overvoltage Categoryclass II conforming to IEC 60536
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Shape Of Signaling Unit Headround
Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Stocking FlagN
Pep CodeENVPEP1710010_V2
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
Energy Model End Of Life C1 C4 2Ecobilan identifier / ELCD-0089 / CODDE-0086 / ECO-168- / CODDE-2161
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C
- Circularity Profile
- ENVEOLI2404014EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- universal LED
- Pep Code
- ENVPEP1710010_V2
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of ProtectionNEMA 13, NEMA 4X
Recycled Metal Content At Cr Level29 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.1613428883
Ambient Air Temperature For Storage-40-70 °C
Environmental DisclosureENVPEP1710010_V2
Packaging Without Single Use PlasticYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- head for illuminated push-button
Range Of ProductHarmony XB5
Overview Attributes
- Device Presentation
- basic element
