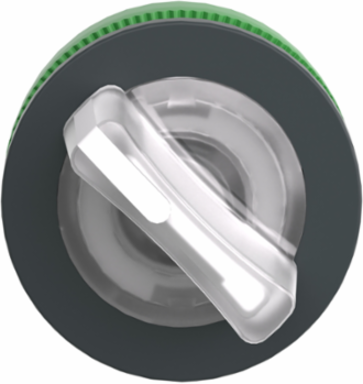

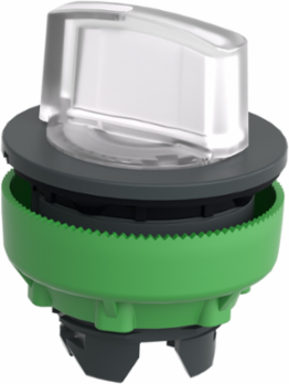

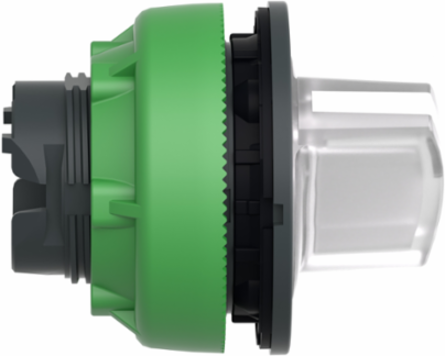

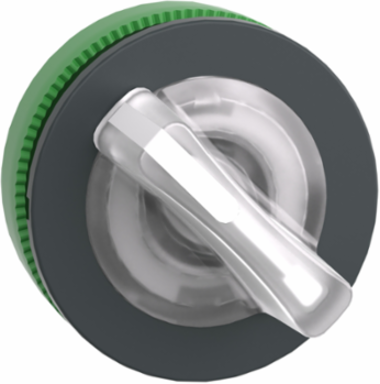

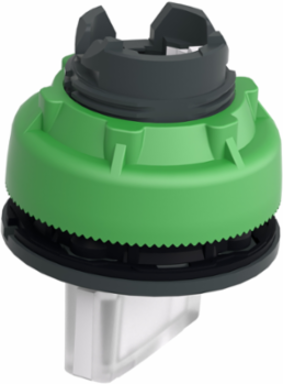

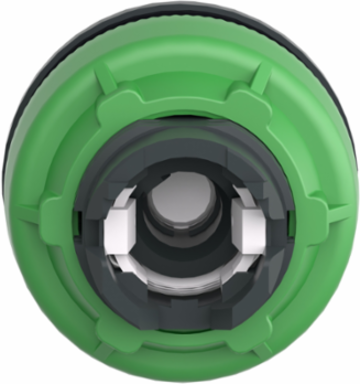

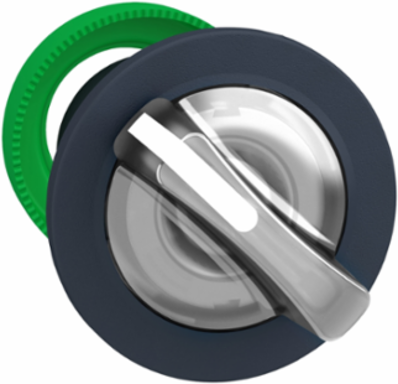

Schneider Electric ZB5FK1213 Head for illuminated selector switch, Harmony XB5, plastic, white handle, universal LED, 2 positions, stay put
Schneider Electric ZB5FK1213 Head for illuminated selector switch, Harmony XB5, plastic, white handle, universal LED, 2 positions, stay put
- MPN: ZB5FK1213
- PPN: SCH-ZB5FK1213
- UNSPSC: 39122221
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$102.71/ EA
Description
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
Specifications
Physical Attributes
- Cad Overall Depth
- 46 mm
- Cad Overall Width
- 37 mm
Cad Overall Height37 mm
Cap Operator Or Lens Colorwhite
Conformance Attributes
- Product Certifications
- CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
StandardsEN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-1, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1 kg CO2 eq., 0.0624965094
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.2 kg CO2 eq., 0.2280973657
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Cap Operator Or Lens Color
- white
- Device Short Name
- ZB5
- Group Of Product
- illum. integral LED
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mechanical Durability
- 1000000 cycles
- Operator Position Information
- 2 positions 90°
- Overvoltage Category
- class II conforming to IEC 60536
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shape Of Signaling Unit Head
- round
- Total Lifecycle Carbon Footprint
- 0.3 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Stocking Flag
- Y
- Pep Code
- ENVPEP2308010EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeM3 4 single front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, M4 4 single and double front mounting integral LED
Carbon Footprint Of The Distribution Phase A40.0039229731, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0077487666, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-01-12
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308010EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Bezel Materialdark grey plastic
Compatibility CodeZB5
GCR BridgeZB5FKCUST01
Head Typebuilt-in-flush
Main Groupillum select switch
Mounting Diameter30.5 mm
Operator Profilewhite standard handle
Package Weight Lbs26.000 g
Product Or Component Typehead for illuminated selector switch
Range Of ProductHarmony XB5
ReturnabilityYes
Sustainable PackagingYes
Type Of Operatorstay put
Medium DescHead for illuminated selector switch, Harmony XB5, plastic, white handle, universal LED, 2 positions, stay put
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionThis illuminated modular selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. .This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.436 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1,UL 508.
Energy Model Manufacturing A1 A3 2Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.3022656148
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP2308010EN
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2308010EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant , Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of ProtectionNEMA 13, NEMA 4X
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Circularity ProfileENVEOLI2308010EN
Packaging Made With Recycled CardboardYes
Product Compatibilityuniversal LED
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- head for illuminated selector switch
Range Of ProductHarmony XB5
