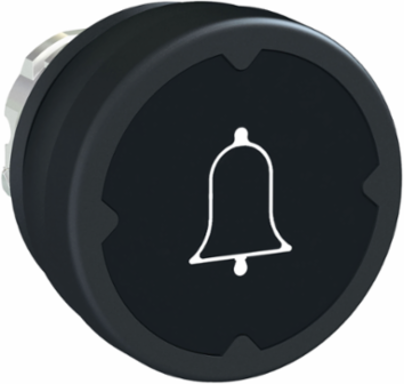

Schneider Electric ZB4BC28001 Harmony XB4 Push Button Head, 22 mm, Black, NEMA 4, IP66

Harmony XB4 Push Button Head, 22 mm, Black, NEMA 4, IP66
  • MPN: ZB4BC28001
  • PPN: SCH-ZB4BC28001

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$100.46/ EA

Description

Schneider Electric presents a robust push button head designed for demanding environments, featuring a 22 mm diameter that is both versatile and easy to integrate into various control systems. This model, part of the Harmony XB4 series, boasts a sleek black finish and complies with NEMA 4 and IP66 standards, ensuring reliable performance against dust and water exposure. Ideal for automation and control applications, it is specifically engineered to endure harsh conditions while providing a responsive and durable interface for operators. With its dependable construction, this push button head is an excellent choice for enhancing operational efficiency in industrial settings.

Specifications

Mechanical Durability
10,000,000 cycles
Vibration Resistance
5 gn 2-500 Hz IEC 60068-2-6
IP Degree of Protection
IP66, IP69K, IP67, IP69 IEC 60529
IK Degree of Protection
IK06 IEC 62262
Ambient Air Temperature for Storage
-40 to 85 B0C (-40 to 185 B0F)
CAD Overall Height
18.5 mm
CAD Overall Depth
37 mm
Bezel Material
Chromium plated metal
Operator Profile
black flush, type H001 white
Colour Of Marking
white
Mercury Free
Yes
Product Certifications
CSA, CE, UL
Country of Origin
France
Shock Resistance30 gn 18 ms half sine wave IEC 60068-2-27
Electrical Shock Protection ClassClass I IEC 61140
NEMA Degree of ProtectionNEMA 4, NEMA 12, NEMA 13, UL 508
Ambient Air Temperature for Operation-40 to 70 B0C (-40 to 158 B0F)
Mounting Diameter22 mm
CAD Overall Width37 mm
Net Weight0.036 kg (0.08 lb)
Type Of Operatorspring return
Marking TypeH001
Toxic Heavy Metal FreeYes
RoHS ComplianceYes
StandardsIEC 60947-1, IEC 60947-5-1, CSA C22.2, UL 508
