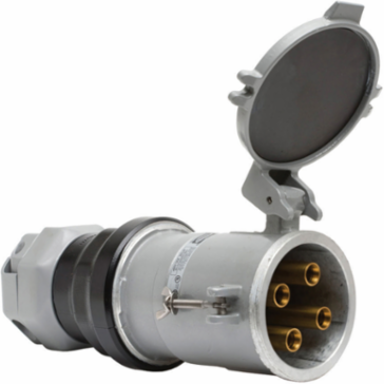

Hubbell Wiring Device-Kellems HBL4200CS1WR Watertight Female Connector Body, 200A 600V AC, 3-Pole 4-Wire
Hubbell Wiring Device-Kellems HBL4200CS1WR Watertight Female Connector Body, 200A 600V AC, 3-Pole 4-Wire
- MPN: HBL4200CS1WR
- UPC: 783585012285
- PPN: HBL-HBL4200CS1WR
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3080.72/ EA
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Connector Body, 200A 600V AC, 3-Pole 4-Wire Grounding Style 1,Terminal Screws
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- Watertight
Specifications
Specifications
- Country of Origin
- United States
- Width
- 8.200 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
- Amperage Rating
- 200 A
- Conductor Range
- #1 AWG to #250 MCM
- Insulation
- Insulated Body
- Number of Conductors
- 4-Wire Grounding Style 1
- Special Features
- Watertight
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 600 VAC/250 VDC
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Poles
- 3-Pole
- Style
- Reversed Service, Style 1
- Description - Invoice
- PS, INS, CONN, 3P4W, 200A 600V, S1 REV
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 76.200 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 6 EA
- Lowest Level UOM
- Each
Current / Amperage Rating200 A
Industry Standard(s)CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
Standards - RoHS Compliance StatusCM
ApplicationMetallic with Nylon Shroud
Environmental ConditionsWatertight
NEMA RatingNon-NEMA
Number of Poles3-Pole
StandardCSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
TypeWatertight Connector
Voltage Rating Description600V AC/250V DC
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard
Number Of Conductors4-Wire Grounding Style 1
Number Of Wires4-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A200
Current Rating200 A
SeriesUL 1686 Class 1 Insulgrip®
BOX SIZE10.000x18.000x10.000 (in)
Carton - Number of Sub Packs6
Carton - SCC-14 Next Lower Level Sub Pack783585012285
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
