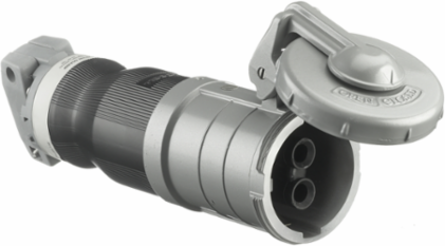

Hubbell Wiring Device-Kellems HBL360CS2W Heavy Duty Insulgrip Female Connector, 60A, 600V AC, 2-Pole
Hubbell Wiring Device-Kellems HBL360CS2W Heavy Duty Insulgrip Female Connector, 60A, 600V AC, 2-Pole
- MPN: HBL360CS2W
- UPC: 783585010502
- PPN: HBL-HBL360CS2W
- UNSPSC: 39121421
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1004.65/ EA
Description
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Connector Body, 60A 600V AC, 2-Pole 3-Wire Grounding Style 2,Terminal Screws
Features
- Watertight neoprene sealing glands for reliable seal
- Spring-Loaded, gasketed cover for dust-tight seal
- Pin chamber confines arcing within the interior chamber
- Watertight
Specifications
Specifications
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Country of Origin
- United States
- Width
- 5.000 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75°C;Min. -40°C w/o impact -25° with impact;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green)
- Application
- Metallic with Nylon Shroud
- Environmental Conditions
- Watertight
- NEMA Rating
- Non-NEMA
- Number of Poles
- 2-Pole
- Standard
- CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
- Type
- Watertight Connector
- Voltage Rating Description
- 600V AC/250V DC
- Display Size
- Standard
- Number Of Conductors
- 3-Wire Grounding
- Number Of Wires
- 3-Wire
- Class Code
- A12
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A12A200
- Current Rating
- 60 A
- Series
- UL 1686 Class 1 Insulgrip®
- BOX SIZE
- 11.100x22.700x10.900 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585010502
- Case Weight
- 28.250 lb.
- Lowest Level UOM
- Each
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Current / Amperage Rating60 A
Industry Standard(s)CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682
Amperage Rating60 A
Conductor Range#6 AWG to #4 AWG
InsulationInsulated Body
Number of Conductors3-Wire Grounding
Special FeaturesWatertight
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating600 VAC/250 VDC
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Poles2-Pole
StyleStandard Service, Style 2
Description - InvoicePS, INS, CONN, 2P3W, 60A 600V, S2
Harmonization Code8536699999
MSDS FlagNo
Material - Mounting HardwareCord Mounted
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack29.650 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
